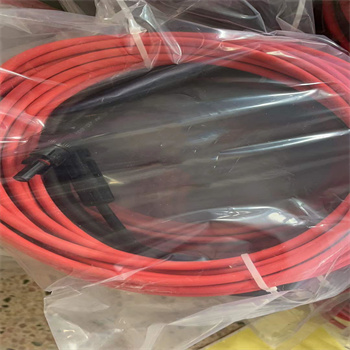

4mm2 Solar PV Cable assembly with Solar Mc4 Connector

4mm2 Solar PV Cable assembly with Solar Mc4 Connector

Construction:
1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5.
2.Insulation: Polyolefin copolymer electron-beam cross-linked.
3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked.
4.Sheath Color: Black/Red/Blue or as per customer's request.

Inquiry Now


Type: 1X4mm2

Conductor Material: Tin copper

Insulating Materials :PV XLPE

Insulating the thin thickness(mm): 0.87mm

Insulation color: Black

Sheath outside diameter: 6.15±0.05mm

Sheath color: Black/Red

Printed words: TUV 2PFG 1169 PV1—F 1X4.0mm2

Cable length: Customized



solar cable specifications

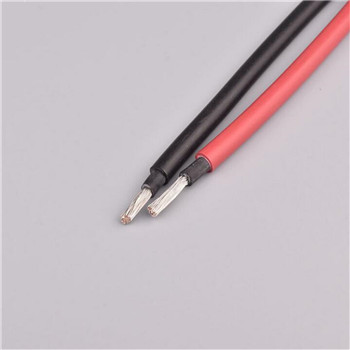

Core Conductor:

Tinned annealed copper(stranded core)

Popular Sizes:

 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2

Cable Conductor:

Stranded tinned annealed copper

Insulation:

XLPE

Jacket:

XLPE(black, red)

Nominal Volvatage:

Uo/U= 600/1000VAC, 1000/1800VDC

Test Voltage:

6500V, 50HZ, 5Min

Fire Performance:

IEC 60332-1, UL1581 VW-1

Bending Radius

Fixed installation>4X,                               Occasionally moved>5X


Single-Core Solar Cable

Cable  Size  (mm2)

 Conductor  Strand     (mm)

Nominal insulation thickness                   (mm)

Nominal sheath thickness   (mm)

Overall  Dia       (mm)

Approx. Weight (kg/km)

Max. Conductor Resis(20ºC)  (Ω/Km)

 1×4

 56/0.30

0.8

0.8

 5.8±0.3

68

4.95

 1×6

 84/0.30

0.8

0.9

 6.6±0.3

94

3.3


Features :

1. For outdoor use and it is moisture,UV and corrosion resistant.

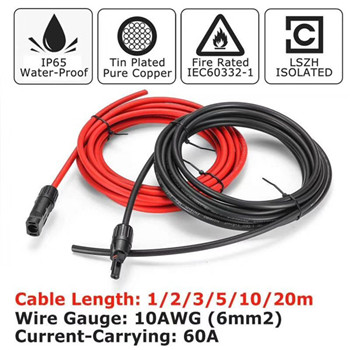

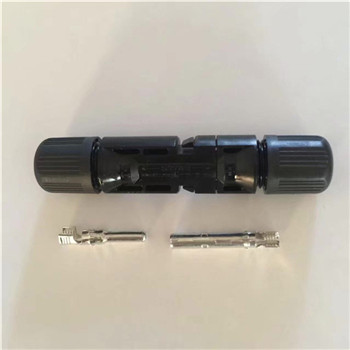

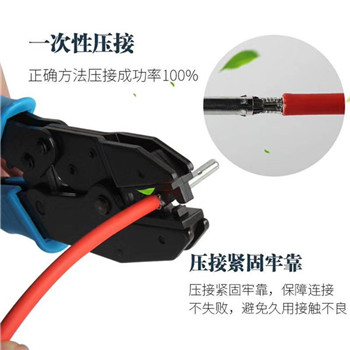

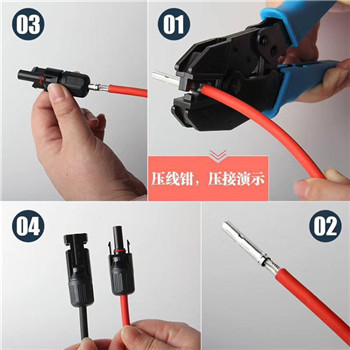

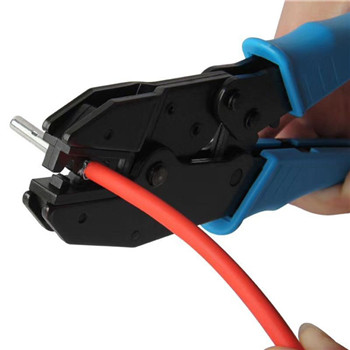

2. Solar Panel Male and Female Hard plastic connector at the end.

3. Black + Red Solar Panel Extension Cable Wire.

4. Extends and locks built-in cables.

5. Voltage: DC 1000V & AC 1800V.

6. Application: used for solar power board, solar energy power station.

7. Range of cross section: 2.5mm2~10mm2.
