1) Rated Temperature: -40℃ to 105℃ 2) Conductor Material: Bare Copper 3) AWG Size: Customized 4) Cable Length: Customized 5) Battery Cable End: Cable lug, top post, battery terminal or customized. 6) Standard: UL758 7) Insulation:PVC 8) Insulation Color: Black, Red, Yellow etc. 9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance

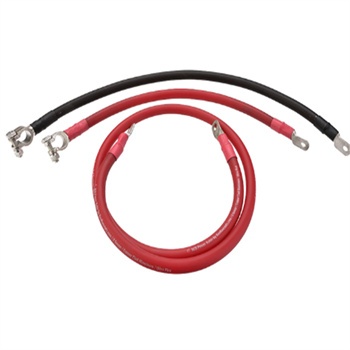

Automotive Battery Cable
Automotive Battery Cable can be used in a variety of applications and is supplied to a number of industries. We offer battery cables
SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler specifications.
Battery wire also comes in a variety of AWG sizes.

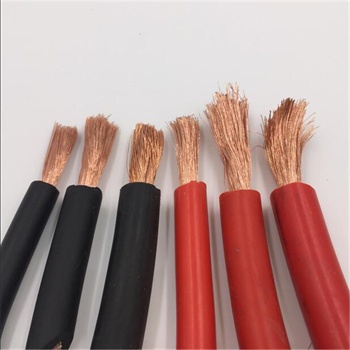

Our battery cable features bare copper conductors and is available in standard battery circuit black and red.
SGT cable can be used in starter or battery ground circuits.
It comes with Polyvinylchloride (PVC) insulation and can withstand temperatures up to 105ºC.
Flex SGT wire is available with higher stranding.
STX wire or SGX wire can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging
is needed.
It has Cross-Linked Polyethylene (XLPE) insulation and can withstand temperatures up to 125ºC.
SGT Automotive Battery Cable/Automotive Starter, Ground or Battery Cable
Construction:
Conductor: Bare copper
Insulation: Polyvinylchloride (PVC)
Color & Print Options: Available in standard battery circuit colors of black and red with optional custom printing available.
Stranding Options: SGT Cable is available with higher stranding.
Applications:
Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.
Recommended temperature range is -40°C to +105°C.
Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450)
SGT Automotive Battery Cable | |||||
AWG Size | Conductor Stranding | Nom. Insul. Thick. (in) | Nom. O.D. (in) | Approx LBS/MFT | SAE Spec |
6 | 37/.0260 | 0.06 | 0.305 | 137 | SAE J-1127 |
4 | 61/.0250 | 0.065 | 0.35 | 168 | SAE J-1127 |
2 | 133/.0218 | 0.065 | 0.44 | 258 | SAE J-1127 |
1 | 133/.0243 | 0.065 | 0.48 | 322 | SAE J-1127 |
1/0 | 133/.0275 | 0.065 | 0.525 | 431 | SAE J-1127 |
2/0 | 133/.0309 | 0.065 | 0.575 | 497 | SAE J-1127 |
3/0 | 361/.0210 | 0.078 | 0.661 | 603 | SAE J-1127 |
4/0 | 361/.0239 | 0.078 | 0.726 | 779 | SAE J-1127 |
1.Conductor Material: Fully annealed bare stranded copper
2.Insulation Material: PVC
3.Maximum Voltage: 450/750 VDC
4.Cable Length: 30CM,60CM,100CM or customized
5.Sectional area:1x16mm2 or customized
6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc
7.Operating Temperature: -50°C to 105°C
8.Standards: RoHS,UL,ISO9001
Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
Services & Advantages
1.OEM / ODM
2. Enough stock to meet fast delivery.
3. 2 year's quality guarantee.
4. Alibaba trade assurance.
5. Form E, FTA,C/O is available.
6. Good after-sale service team to solve problems until customer received goods well
7. Inspect every product before delivery
8. Welcome to visit our factory
