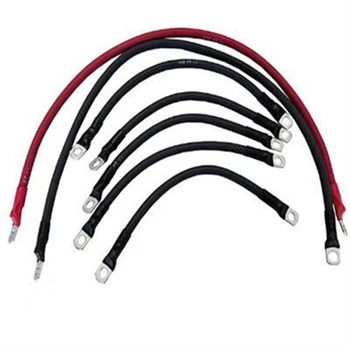

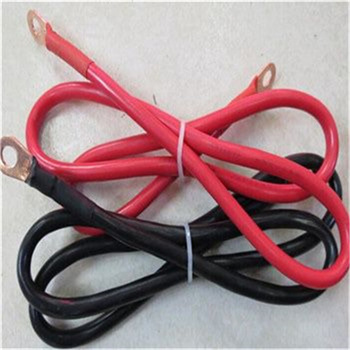

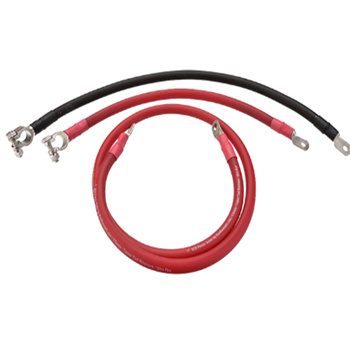

1) Rated Temperature: -40℃ to 105℃ 2) Conductor Material: Bare Copper 3) AWG Size: Customized 4) Cable Length: Customized 5) Battery Cable End: Cable lug, top post, battery terminal or customized. 6) Standard: UL758 7) Insulation:PVC 8) Insulation Color: Black, Red, Yellow etc. 9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
Automotive Battery Cable can be used in a variety of applications and is supplied to a number of industries.
We offer battery cables SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler specifications.
Battery wire also comes in a variety of AWG sizes.
Our battery cable features bare copper conductors and is available in standard battery circuit black and red.
S.A.E J1127 Thermoplastic Elastomer Battery Cable
GAUGE | STRANDING | INSULATION | NOMINAL O.D. | STANDARD | APPROX. WEIGHT | ||||
THICKNESS | PACKAGE | ||||||||
in | mm | in | mm | in | mm | m | LBS/1000FT | kg/km | |
6 | 7*37/0.01 | 7*37/0.25 | 0.06 | 1.52 | 0.310 | 7.87 | 1000 | 113 | 168.3 |
4 | 7*52/0.01 | 7*52/0.25 | 0.06 | 1.52 | 0.345 | 8.76 | 1000 | 147 | 219.0 |
2 | 12*52/0.01 | 12*52/0.25 | 0.06 | 1.52 | 0.417 | 10.59 | 500 | 236 | 351.5 |
1 | 12*65/0.01 | 12*65/0.25 | 0.08 | 2.03 | 0.500 | 12.70 | 500 | 313 | 466.2 |
1/0 | 19*52/0.01 | 19*52/0.25 | 0.08 | 2.03 | 0.530 | 13.46 | 500 | 378 | 563.0 |
2/0 | 19*65/0.01 | 19*65/0.25 | 0.08 | 2.03 | 0.583 | 14.81 | 500 | 463 | 689.6 |
3/0 | 19*81/0.01 | 19*81/0.25 | 0.08 | 2.03 | 0.622 | 15.80 | 500 | 563 | 838.6 |
4/0 | 19*106/0.01 | 19*106/0.25 | 0.08 | 2.03 | 0.710 | 18.03 | 500 | 734 | 1093.3 |
250 | 19*133/0.01 | 19*133/0.25 | 0.12 | 3.05 | 0.855 | 21.72 | 500 | 938 | 1397.2 |
350 | 19*7*26/0.01 | 19*7*26/0.25 | 0.12 | 3.05 | 0.995 | 25.27 | 500 | 1282 | 1909.5 |
500 | 19*7*38/0.01 | 19*7*38/0.25 | 0.12 | 3.05 | 1.170 | 29.72 | 500 | 1840 | 2740.7 |

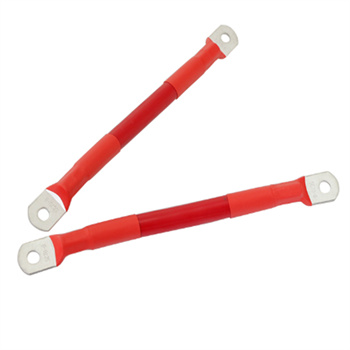

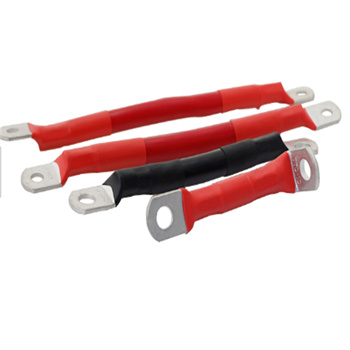

1.Conductor Material: Fully annealed bare stranded copper
2.Insulation Material: PVC
3.Maximum Voltage: 450/750 VDC

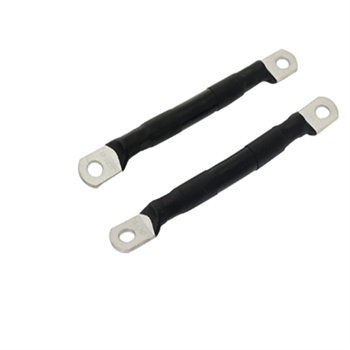

4.Cable Length: 30CM,60CM,100CM or customized
5.Sectional area:1x16mm2 or customized
6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc
7.Operating Temperature: -50°C to 105°C
8.Standards: RoHS,UL,ISO9001

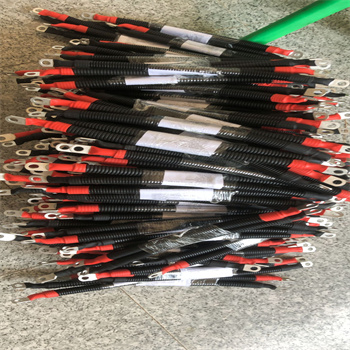

Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
