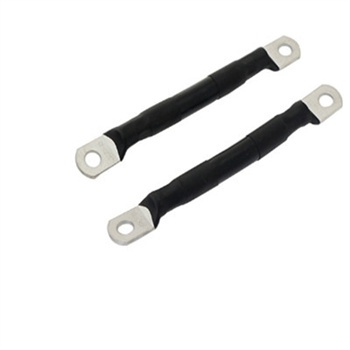

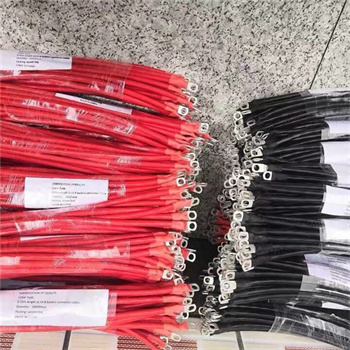

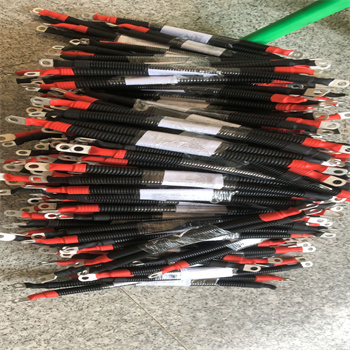

OEM terminal lugs wire harness solar inverter dc battery cable
1) Rated Temperature: -40℃ to 105℃
2) Conductor Material: Bare Copper
3) AWG Size: Customized
4) Cable Length: Customized
5) Battery Cable End: Cable lug, top post, battery terminal or customized.
6) Standard: UL758
7) Insulation:PVC
8) Insulation Color: Black, Red, Yellow etc.
9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
SGT Automotive Battery Cable | |||||
AWG Size | Conductor Stranding | Nom. Insul. Thick. (in) | Nom. O.D. (in) | Approx LBS/MFT | SAE Spec |
6 | 37/.0260 | 0.06 | 0.305 | 137 | SAE J-1127 |
4 | 61/.0250 | 0.065 | 0.35 | 168 | SAE J-1127 |
2 | 133/.0218 | 0.065 | 0.44 | 258 | SAE J-1127 |
1 | 133/.0243 | 0.065 | 0.48 | 322 | SAE J-1127 |
1/0 | 133/.0275 | 0.065 | 0.525 | 431 | SAE J-1127 |
2/0 | 133/.0309 | 0.065 | 0.575 | 497 | SAE J-1127 |
3/0 | 361/.0210 | 0.078 | 0.661 | 603 | SAE J-1127 |
4/0 | 361/.0239 | 0.078 | 0.726 | 779 | SAE J-1127 |
Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
Services & Advantages
1.OEM / ODM
2. Enough stock to meet fast delivery.
3. 2 year's quality guarantee.
4. Alibaba trade assurance.
5. Form E, FTA,C/O is available.
6. Good after-sale service team to solve problems until customer received goods well
7. Inspect every product before delivery
8. Welcome to visit our factory
