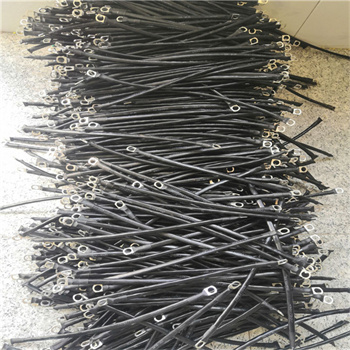

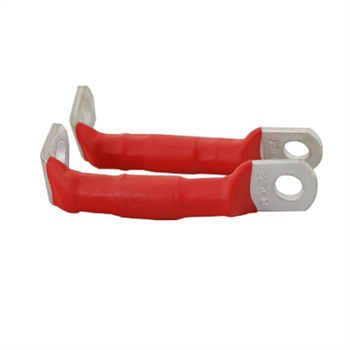

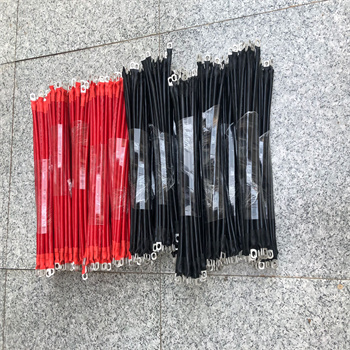

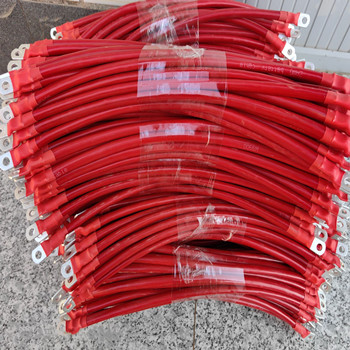

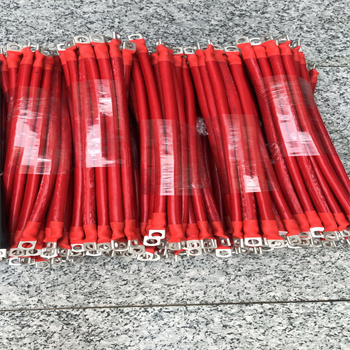

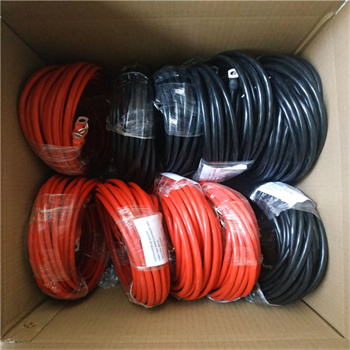

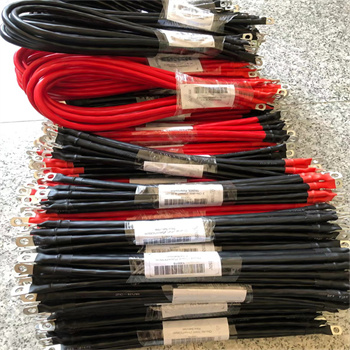

Battery Cable 25mm2 with Top Post Battery Terminal and Lug Assembly Tinned SC25-10

Battery Cable 25mm2 with Top Post Battery Terminal and Lug Assembly Tinned SC25-10

Battery Cable 25mm2 with Top Post Battery Terminal and Lug Assembly Tinned SC25-10

Inquiry Now

Construction

Conductor material: Bare Copper

Gauge: 500 6

Insulation material: TPE

Operating Temperature: -40°C to 90°C

Meets Requirements: NEC

Applications



Secondary voltage resistance welding cable leads.

Temporary power uses

National Electrical Code article 630 electric welders.

Power supply applications not exceeding 600 volts AC.

Features



Special stranding and packaging are available upon request.

Oil and Flame Resistant.

Custom print available upon request.



S.A.E J1127 Thermoplastic Elastomer Battery Cable

GAUGE

STRANDING

INSULATION

NOMINAL O.D.

STANDARD

APPROX. WEIGHT

THICKNESS

PACKAGE

in

mm

in

mm

in

mm

m

LBS/1000FT

kg/km

6

7*37/0.01

7*37/0.25

0.06

1.52

0.310

7.87

1000

113

168.3

4

7*52/0.01

7*52/0.25

0.06

1.52

0.345

8.76

1000

147

219.0

2

12*52/0.01

12*52/0.25

0.06

1.52

0.417

10.59

500

236

351.5

1

12*65/0.01

12*65/0.25

0.08

2.03

0.500

12.70

500

313

466.2

1/0

19*52/0.01

19*52/0.25

0.08

2.03

0.530

13.46

500

378

563.0

2/0

19*65/0.01

19*65/0.25

0.08

2.03

0.583

14.81

500

463

689.6

3/0

19*81/0.01

19*81/0.25

0.08

2.03

0.622

15.80

500

563

838.6

4/0

19*106/0.01

19*106/0.25

0.08

2.03

0.710

18.03

500

734

1093.3

250

19*133/0.01

19*133/0.25

0.12

3.05

0.855

21.72

500

938

1397.2

350

19*7*26/0.01

19*7*26/0.25

0.12

3.05

0.995

25.27

500

1282

1909.5

500

19*7*38/0.01

19*7*38/0.25

0.12

3.05

1.170

29.72

500

1840

2740.7





Features:

1. High quality car battery cable.

2. Battery cable, 10AWG8AWG6AWG4AWG etc are optional.

3. PVC jacket in various colors and transparent are optional.

4. Length: As your requests.

5. The cable can be printed with your specifications or logo.

6. One or two sample can be free if it available, but freight collect.
