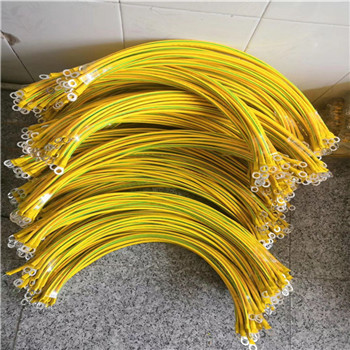

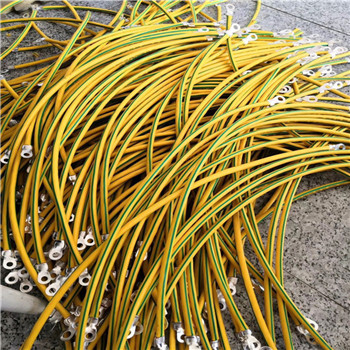

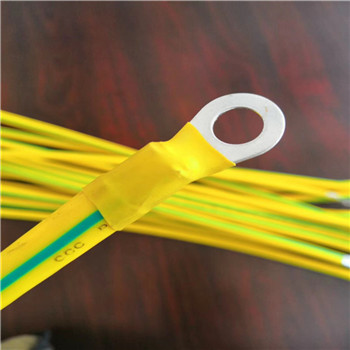

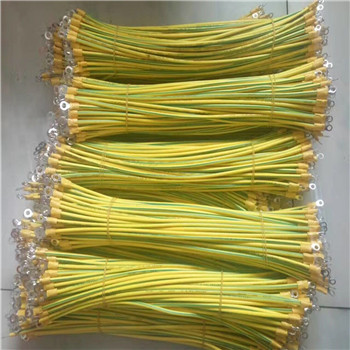

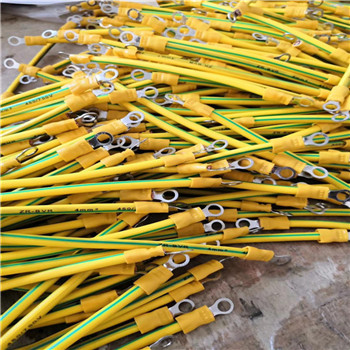

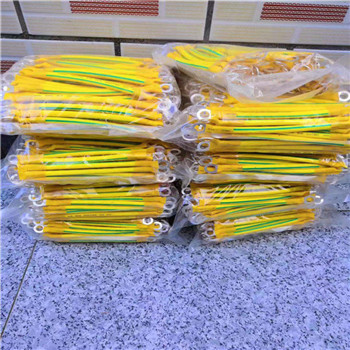

4Sqmm yellow green PVC Earthing Cable 15 cm Length crimped with ring Type yellow insulated Lugs (5mm/6mm Stud hole) at either ends
Product Features:
1. High quality pure copper conductor.
2. Low Resistance, Stable Conductivity and Strong Current Load.
3. PVC environmental insulated material.
4. Good flame retardant performance, safe and stable use.
5. Excellent terminals with stable connection and wear-resistant.
6. Factory direct sales, OEM is welcomed.
7. The bigger quantity, the bigger discount.
| Product Name | Photovoltaic Panel Grounding Wire With lugs |
| Product Conductor | Flexible Stranded Copper Conductor |
| Rated Voltage | 450/750V |
| Product Standard | IEC60227 |
| Insulation Material | PVC Insulation |
| Product Color | Yellow & Green |
| Product Length | 8CM/10CM/12CM/15CM/20CM/30CM (Can be customized) |
| Cross Section | 2.5MM2/4.0MM2/6.0MM2 (Can be customized) |
| Terminal Aperture Spacing | 4mm/5mm/6mm/8mm...(Can be Customized) |
| Temperature Rating | “-15degree to +70degree F14 |
| Product Application | Photovoltaic Solar Panels, Home Distribution Box, Project Engineering, Urban Power Grid, Bridge Earthing,Flange Grounding. |
450/750V CU/PVC/PVC (BS 6004) Electrical Cable | ||||||
section area (mm2) | Class of Conductor | Insulation Thickness(mm) | Sheath Thickness (mm) | OD cable (mm) | Weight of cable (Kg/km) | Max. DC-resist conductor 20℃(Ohm/km) |
1.5 | 5 | 0.9 | 0.8 | 4.91 | 38 | 13.3 |
2.5 | 5 | 0.9 | 0.8 | 5.4 | 49 | 7.98 |
4 | 5 | 1 | 0.9 | 6.25 | 71 | 4.95 |
6 | 5 | 1.1 | 0.9 | 7.6 | 101 | 3.3 |
10 | 5 | 1.2 | 1.1 | 8.56 | 152 | 1.91 |
16 | 5 | 1.2 | 1.1 | 9.8 | 215 | 1.21 |
25 | 5 | 1.4 | 1.1 | 11.5 | 307 | 0.78 |
35 | 5 | 1.4 | 1.1 | 12.5 | 405 | 0.554 |
50 | 5 | 1.4 | 1.4 | 15.1 | 580 | 0.386 |
