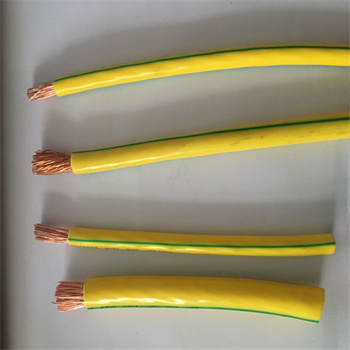

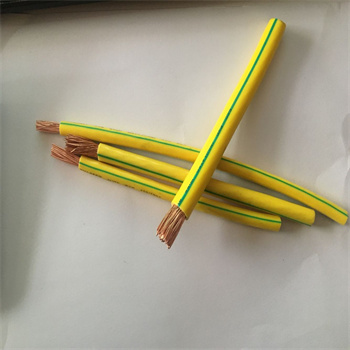

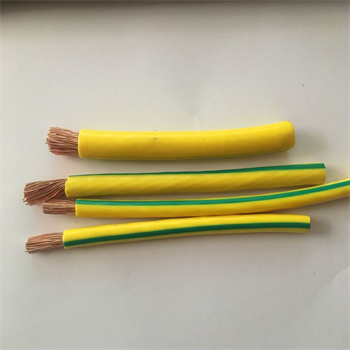

Flexible Copper conductor Earth Cable Yellow/Green from 2.5mm2 to 185mm2

Flexible Copper conductor Earth Cable Yellow/Green from 2.5mm2 to 185mm2

Flexible Copper conductor Earth Cable Yellow/Green from 2.5mm2 to 185mm2

Inquiry Now

1,Application

This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and

apparatus, telecommunications equipment and lighting ect. fixed installation.





2,Operating Characteristic

1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V

2)The conductor of electric wire cable allows working temperature <70°C for long time

3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius

should ≥4D,OD≥25mm, allowed bending radius should≥6D


Flexible Copper conductor Earth Cable Yellow/Green from 2.5mm2 to 185mm2

 Nominal

Number/diameter

Insulation

 Maximum outer

 Reference

Conductor

section

of core

 thickness

diameter

Weight

resistance at

(mm2)

(mm)

 (mm)

(mm)

(km/kg)

20°C≤






(Ω/km)

0.5

1/0.80

0.6

2.4

8.44

36

0.75

1/0.97

0.6

2.6

11.02

24.5

1

1/1.13

0.6

2.8

13.85

18.1

1.5

1/1.38

0.7

3.3

20.2

12.1

1.5

7/0.52

0.7

3.4

21.62

12.1

2.5

1/1.78

0.8

3.9

31.9

7.41

2.5

7/0.68

0.8

4.2

34.89

7.41

4

1/2.25

0.8

4.4

46.95

4.61

4

7/0.85

0.8

4.8

50.2

4.61

6

1/2.76

0.8

4.9

66.8

3.08

6

7/1.04

0.8

5.4

71.04

3.08

10

1/3.58

1

6.4

111.62

1.83

10

7/1.35

1

6.8

118.61

1.83

16

7/1.70

1

8

178.68

1.15

25

7/2.14

1.2

9.8

280.51

0.727

35

7/2.52

1.2

11

378.97

0.524
