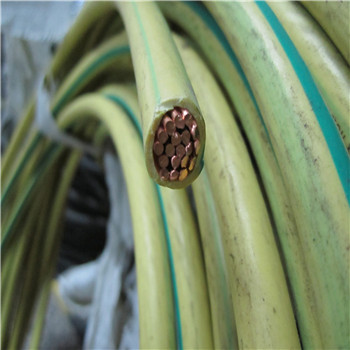

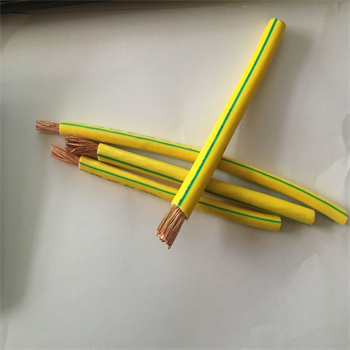

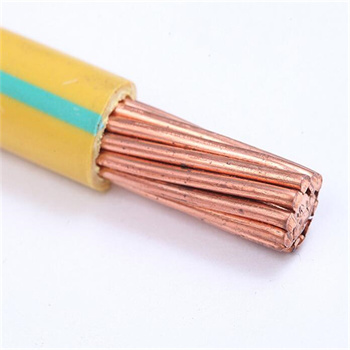

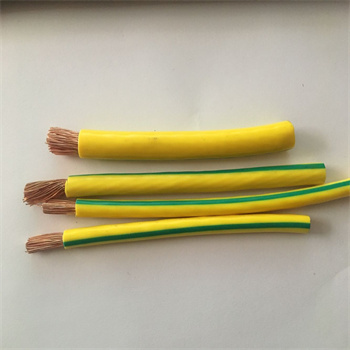

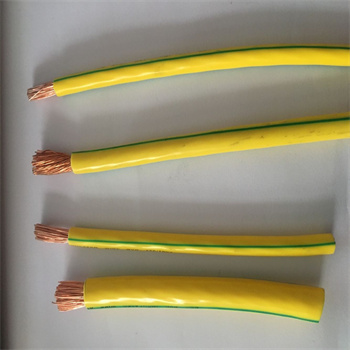

Earth yellow green wire 35mm2 35mm 50mm2 50mm copper ground earth cable

Earth yellow green wire 35mm2 35mm 50mm2 50mm copper ground earth cable

Earth yellow green wire 35mm2 35mm 50mm2 50mm copper ground earth cable

Inquiry Now

Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.

These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation.

The cable can be of flame ratardance,fire resistance and other property.



 Nominal

Number/diameter

Insulation

 Maximum outer

 Reference

Conductor

section

of core

 thickness

diameter

Weight

resistance at

(mm2)

(mm)

 (mm)

(mm)

(km/kg)

20°C≤






(Ω/km)

0.5

1/0.80

0.6

2.4

8.44

36

0.75

1/0.97

0.6

2.6

11.02

24.5

1

1/1.13

0.6

2.8

13.85

18.1

1.5

1/1.38

0.7

3.3

20.2

12.1

1.5

7/0.52

0.7

3.4

21.62

12.1

2.5

1/1.78

0.8

3.9

31.9

7.41

2.5

7/0.68

0.8

4.2

34.89

7.41

4

1/2.25

0.8

4.4

46.95

4.61

4

7/0.85

0.8

4.8

50.2

4.61

6

1/2.76

0.8

4.9

66.8

3.08

6

7/1.04

0.8

5.4

71.04

3.08

10

1/3.58

1

6.4

111.62

1.83

10

7/1.35

1

6.8

118.61

1.83

16

7/1.70

1

8

178.68

1.15

25

7/2.14

1.2

9.8

280.51

0.727

35

7/2.52

1.2

11

378.97

0.524




Technical Information:

1.U0 /U:300/500V,450/750V

2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734

3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent

4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded

5.Insulation:PVC

6.Cores:Single core

7.Range of Nominal cross section:0.75~240sqmm

8.Jacket:Without Jacket

9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request

10.Flame ratardance,fire resistance and other property can be available

11.Packing:100 meter/roll or as per requirement

12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.

13.OME can be available

14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top
