Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).

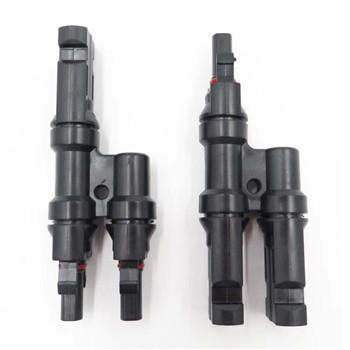

 T- Branch Solar Cable Power Connector

1.Compatible with cable coupler solar connector PV-KBT4/KST4.

2.15 Years of production experience in solar connectors

3.TUV approved & Quick and easy to install

4.Protection class IP67 Suitable for outdoor harsh environments

5.Stable connection & Reducing maintenance cost

6.Free Sample is available






Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.



Technical Data

Rated Current 30A(2.5-6mm2),

Rated Voltage 1000VDC/600VDC

Test Voltage 6000V(50Hz,1min)

Overvoltage Type/Pollution Degree CAT III /2

Contact Resistance Of Plug Connector ImΩ

Contact Material Copper, Tin-plated

Insulation Material PPO

Degree Of Protection IP2X/IP67

Safety Class II

Suitable Cable OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force ≤ 50N/≥ 50N

Connecting System Crimp connection

Temperature Range -40 °C ~ +125°C
