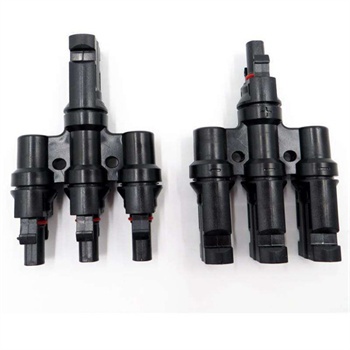

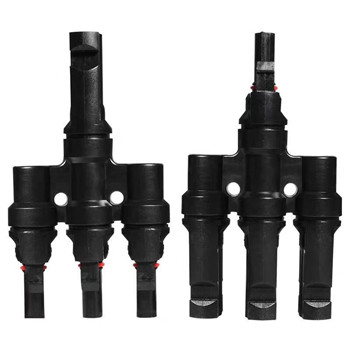

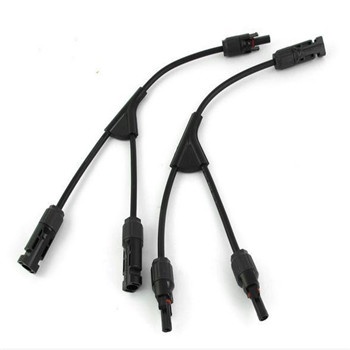

Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project. Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).

Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.

Technical Data

Rated Current 30A(2.5-6mm2),

Rated Voltage 1000VDC/600VDC

Test Voltage 6000V(50Hz,1min)

Overvoltage Type/Pollution Degree CAT III /2

Contact Resistance Of Plug Connector ImΩ

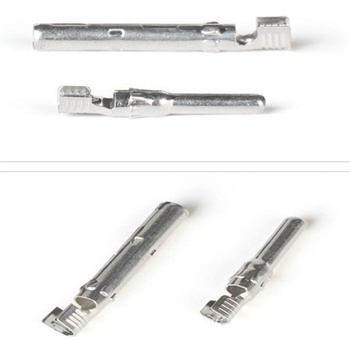

Contact Material Copper, Tin-plated

Insulation Material PPO

Degree Of Protection IP2X/IP67

Safety Class II

Suitable Cable OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force ≤ 50N/≥ 50N

Connecting System Crimp connection

Temperature Range -40 °C ~ +125°C
