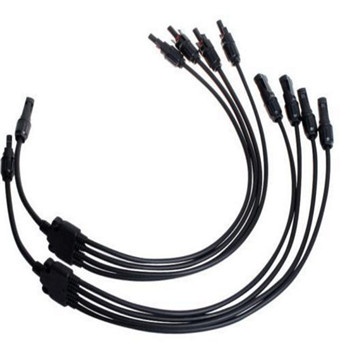

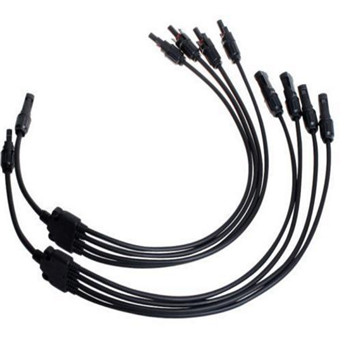

Y Type(1 to 4) Solar Style Branch Panel PV Cable Connectors

Description:

These are Y Type(1 to 4)  Style Branch Connector Cables which are approved by TUV. This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.



Feature:

-1 Pair of Y Type(1 to 4)  Solar Panel Cable Connectors:1 male to 4 female (M/FFFF) and 1 female to 4 male(F/MMMM)

-Compatible

-Double seal rings for better waterproof effect

-Compatible with PV cables with different insulation diameters

-It can be used in harsh environment

-With excellent aging resistance and UV endurance

-Created seal, design of dust proof

-Load capability with big current and high voltage

-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

-Strong pulling force capability

-Resistance of extra high & low temperature and fireproof

-Lower contact resistance



Specification:

-main cable specification6mm2(AWG10)

-Branch cable specification4mm2(AWG12)

-Rated Current: 30A

-Rated voltage: 1000VDC

-Contact resistance: ≤0.2mmΩ

-Waterproof degreeIP67

-Safety Class: Ⅱ

-Withdrawal force: ≥50N

-Insertion force: ≤50N

-Insulation material:PPO+PA

-Connecting system: crimping connection

-Temperature range: -40 ℃ ~ +90 ℃

-Cable length: 74.5mm
