1. Wire size : AWG 8 - 750 or 10 mm² - 400 mm²
2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm
3. Standard : DIN EN 61373 class 1B vibration-tested
4. Certification : ISO9001,SGS,CE,ROHS

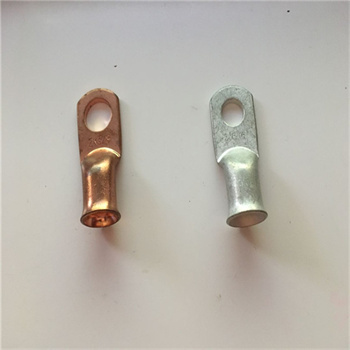

Battery copper cable lugs tube terminal | |
Product Name | AWG series Cable lug |
Material | C11000,C1100,CU-ETP,E-CU58 for high conductivity |
Surface | Tin-plated to protect against corrosion for Salt spray experiment 48H |
Hardness | HV: 120 - 70 |
Maching acuuracy class | High |
Pullout test | Conform to UL486 standard |
Contact resistance | Conform to UL486 standard |
Flammability rating of material | Conform to UL486 standard |
