Operate temperature: -60degree to+600degree Cable Construction: pure nickel wire + glass fiber + mica + glass fiber+Stainless steel braided
TECNICAL DATA
Condutor: Nickel
Temperature range:-60℃~+800℃
Rated Voltage: 500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.

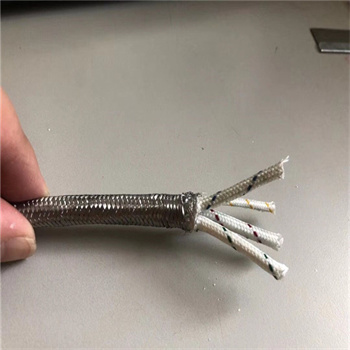

pure nickel wire Stainless steel braided High temperature resistant cable GN500-03-P
Sectional Area (mm²) | Condutor Construction (mm) | Insulation Thickness (mm) | Outer Diameter (mm） | Max.Condutor Resistance DC20℃ （Ω/km | Packing (m) |
0.5 | 7×0.30 | 0.5 | 2.6±0.3 | 160.4 | 200 |
0.75 | 11×0.30 | 0.5 | 2.7±0.3 | 106.8 | 200 |
1 | 14×0.30 | 0.5 | 2.8±0.3 | 80.0 | 200 |
1.5 | 21×0.30 | 0.5 | 3.0±0.3 | 54.8 | 100 |
2 | 28×0.30 | 0.6 | 3.3±0.5 | 42.0 | 100 |
2.5 | 35×0.30 | 0.6 | 3.6±0.5 | 32.8 | 100 |
4 | 56×0.30 | 0.8 | 4.7±0.5 | 20.4 | 100 |
6 | 84×0.30 | 0.8 | 5.5±0.5 | 13.6 | 100 |
10 | 84×0.40 | 0.8 | 6.6±0.5 | 7.8 | 100 |
16 | 228×0.30 | 0.8 | 7.8±0.5 | 4.96 | 100 |
126×0.40 | 0.8 | 7.8±0.5 | 4.96 | 100 | |
25 | 196×0.40 | 0.8 | 9.5±0.5 | 3.18 | 100 |
361×0.30 | 0.8 | 9.5±0.5 | 3.18 | 100 | |
35 | 494×0.30 | 0.8 | 11.2±1.0 | 2.26 | 100 |
50 | 396×0.40 | 1.2 | 13.2±1.0 | 1.58 | 100 |
703×0.30 | 1.2 | 13.2±1.0 | 1.58 | 100 | |
70 | 551×0.40 | 1.2 | 15.4±1.0 | 1.11 | 100 |
988×0.30 | 1.2 | 15.4±1.0 | 1.11 | 100 | |
95 | 760×0.40 | 1.2 | 17.4±1.0 | 0.84 | 100 |
