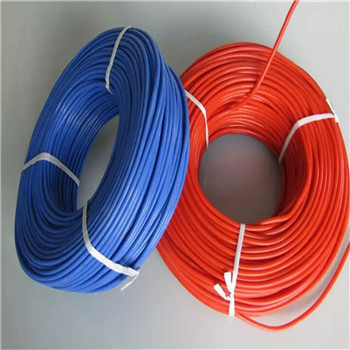

AFP, AFPF, AFBF telfon insulation and sheath multicore cable high temperature cable

Product features:

Working temperature:

65 ℃ 200 ℃ (FEP)

65 ℃ 250 ℃ (PFA),

Rated voltage: 300/500V

Construction:

conductor material: silver plated copper wire, tin copper wire or nickel plated copper wire,

insulation materials: FEP, PFA, PTFE,

shielding materials: silver plated copper wire, tin copper wire or aluminum foil,

sheath material, FEP, PFA sheath

colors: red, yellow, blue, white, black, green, brown, orange, gray, transparent, and so on.

Application:

used for various mobile machine, aviation, steel, power plants, glass manufacturing, petrochemical, temperature sensor

and high temperature environment

AFP, AFPF, AFBF telfon insulation and sheath multicore cable high temperature cable
Nominal area	Strand/Diameter	Nominal insulation thickness	No. of cores	Nominal sheath thickness	Maximum DC Resistance at 20℃ （Ω/km）
(mm2)	(mm)	（mm）	No. of cores	(mm）	tinned copper wire	silver plated copper wire
0.035	7/0.08	0.15	≤37cores	≥1.0	568	525
0.05	7/0.10	0.2			356	330
0.08	7/0.12	0.2			245	227
0.12	7/0.15	0.25			160	146
0.2	7/0.20	0.25			90.4	83.5
0.35	19/0.16	0.25			53.1	49.5
0.5	19/0.18	0.25			36.7	36
0.75	19/0.23	0.28	≤19cores	≥1.2	24.6	22.7
1	19/0.26	0.28			20.4	19
1.5	19/0.32	0.32			12.7	11.7
2	19/0.37	0.32			10	9.45
2.5	19/0.41	0.4			7.43	6.86
4	37/0.37	0.4	≤7cores	≥1.5	4.88	4.51
6	37/0.45	0.5	≤7cores	≥1.5	3.3	3.05
Noted:Other sizes and colours available on request
