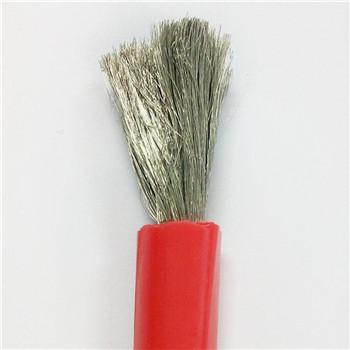

VDE H05s-K 2.5 Sqmm Copper Wire Silicone Rubber Insulated Cable
Application
The Silicone product ranges for wire and cable as well as industrial applications such as electronic equipment,
temperature sensor, aircraft, the aviation, war, metallurgy, chemical engineering. Automobile, ship, electric instrumentation,
machinery etc.
Technical Date
(1)Nominal Voltage: 300V/500V
(2) Temperature Range: -60 ~ +180C
(3)Testing Voltage: 2000V
(4)Conductor: Bare Copper or Tinned Copper
(5)Insulation: Silicone Rubber
(6)Colors: White, Blue, Red, Black, Brown, Yellow, Green, Transparent, Yellow/Green
(7)Use:Inner fixed wires for Home Electric appliance, Lighting equipment, Electronic equipment .
Standard
VDE 0282-3
Specification:
Conductor | Insulation | Max DC Resis 20℃(Ω/km) | ||||
Spec(mm2) | Conductor Structure | OD(mm) | Nominal Thickness | Nominal Diameter | Max. Diameter | |
(No./mm) | (mm) | (mm) | (mm) | |||
0.5 | 28/0.15 | 0.94 | 0.8 | 2.6 | 3.1 | 40.1 |
0.75 | 24/0.20 | 1.13 | 0.8 | 2.8 | 3.2 | 26.7 |
1 | 32/0.20 | 1.31 | 0.8 | 3 | 3.4 | 20 |
1.5 | 30/0.25 | 1.58 | 0.9 | 3.5 | 4 | 13.7 |
2.5 | 49/0.25 | 2.06 | 1 | 4.1 | 4.7 | 8.21 |
