XLPE Insulation Twin core AC&DC PV solar cable UL&TUV 2 PfG 1169 PV1-F Wire 2.5~25mm2

XLPE Insulation Twin core AC&DC PV solar cable UL&TUV 2 PfG 1169 PV1-F Wire 2.5~25mm2

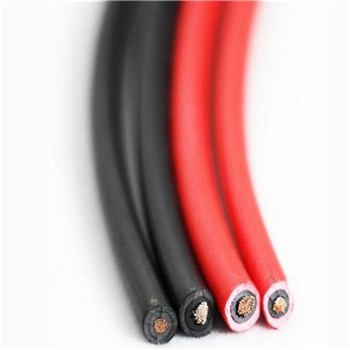

Construction:
1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5.
2.Insulation: Polyolefin copolymer electron-beam cross-linked.
3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked.
4.Sheath Color: Black/Red/Blue or as per customer's request.

Inquiry Now

Application

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment  with high mechanical

requirements and extreme weather conditions .For permanent installations.



XLPE Insulation Twin core AC&DC PV solar cable UL&TUV 2 PfG 1169 PV1-F Wire 2.5~25mm2

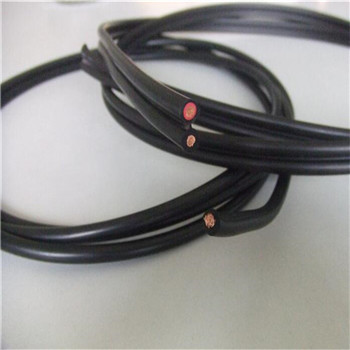

 Twin Core  Solar cable

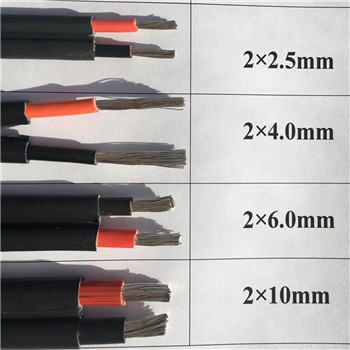

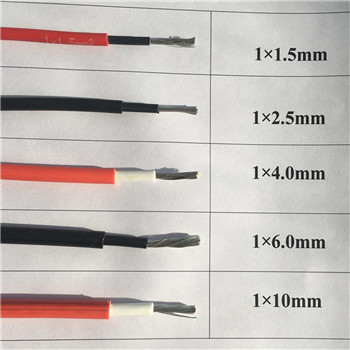

Cable  Size

(mm2)

 Conductor

Strand

(mm)

Nominal

insulation

thickness

(mm)

Nominal

sheath

thickness

(mm)

Overall  Dia

(mm)

Max. Conductor

Resis(20ºC)

(Ω/Km)

 2×2.5

 49/0.25

 0.7

 0.8

 5.0±0.3×10.6±0.3

 8.21

 2×4

 56/0.30

 0.8

 0.9

 6.2±0.3×13.8±0.3

 5.09

 2×6

 84/0.30

0.8

 1.0

 7.2±0.3×15.3±0.3

 3.39

 2×10

 84/0.40

 1.0

 1.0

 9.0±0.3×19.2±0.3

 1.95


Main feature:

1.Temperature range for application -40°C up to 90°C, max.temperature at conductor 120°C

2.Electron beam cross-linked material does not melt or flow at high temperatures

3.The permitted short-circuit-temperature refer to a period of 5s is 200°C

4.High resistance against UV,ozone and hydrolysis

5.Flexible,easy to strip

6.Dual wall insulation.Electron beam cross-linked

7.Excellent resistance to U.V,oil,greases,oxygen and ozone

8.Excellent resistance to abrasion

9.Halogen free, flame retardant,low toxicity

10.Excellent flexibility and stripping performance

11.High current carring capacity
