Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Cable design
Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water ,
UV resistant
Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C
Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V
AC-test-voltage: 6.5KV
Application
SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems

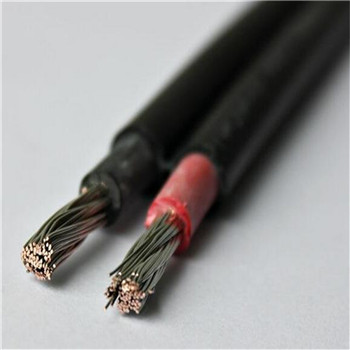

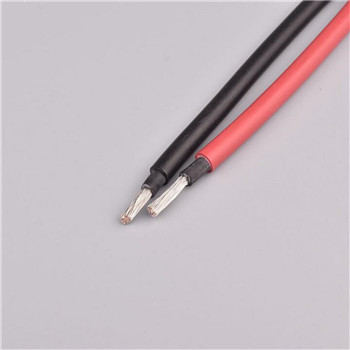

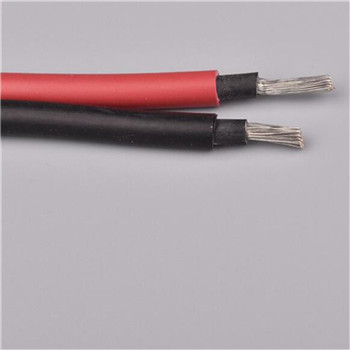

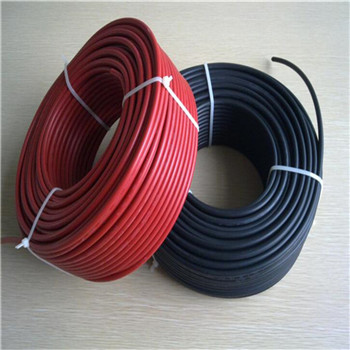

4mm2, 6mm2, 10mm2 TUV Approved DC Cable for PV System Wire Cable 0.6/1.0kV
Single-Core Solar Cable | ||||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Approx. Weight (kg/km) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×4 | 56/0.30 | 0.8 | 0.8 | 5.8±0.3 | 68 | 4.95 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.6±0.3 | 94 | 3.3 |
Twin Core Solar cable | |||||||
Cable Type | Nominal area | Core construction | Conductor Dia | Outer Dia | Max. Conductor Resis(20ºC) | Rated voltage | Rated current |
(mm2) | Strand/Dia (mm) | mm | mm | Ω/Km | AC/DC(V) | (A) | |
2x1.5mm2 | 1.5 | 30X0.25 | 1.6 | 5.80*9.30 | 13.9 | 1000/1800 | 20 |
2x2.5mm2 | 2.5 | 48X0.25 | 2 | 6.20*9.90 | 8.06 | 1000/1800 | 30 |
2x4.0mm2 | 4 | 56X0.30 | 2.6 | 6.90*11.30 | 4.97 | 1000/1800 | 50 |
