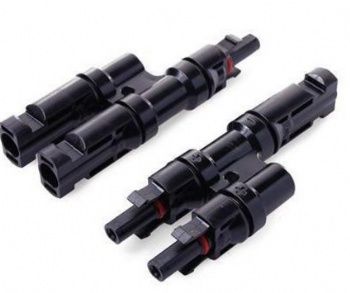

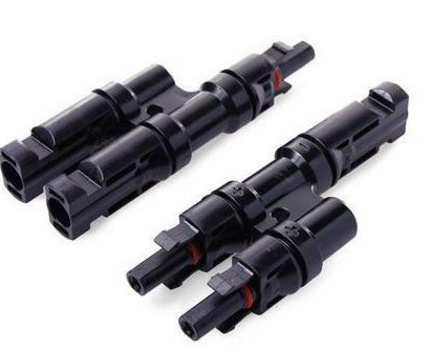

4 solar panels connected in parallel with pv connector Photovoltaic connector 4 branches

4 solar panels connected in parallel with pv connector Photovoltaic connector 4 branches

4 solar panels connected in parallel with pv connector Photovoltaic connector 4 branches

Inquiry Now

Product specification:

1.Product name:  Branch Connector

2.Material: Plastic and metal

3. Rated Voltage :  1000V

4. Rated Current :  20A(4mm2), 30A(6mm2)

5. Safety Class :  ClassⅡ

6.Protection Degree: IP67

7. Contact Resistance :  ≤2M Ω

8.Insulation resistance: ≥500MΩ

9 .Insulation Material : PP0

10. Ambient Temperature:  -40+105℃

12. Contact element: Contact: Copper CN, tinned SN

13. Suitable cable 2.5/4/6(AWG14/12/10).



It is a dedicated branch of solar photovoltaic modules. It is a good choice for distributed systems.

It is fast, reliable, waterproof and dustproof, fast and convenient to use, and has a strong outer casing.

Anti-aging, UV resistance, cable connection is connected by crimping and tightening.

The male and female connectors are fixed with a stable automatic locking mechanism for easy opening and closing.
