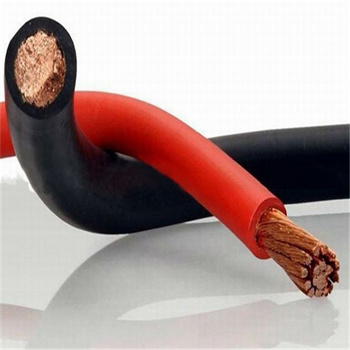

1) Rated Temperature: -40℃ to 105℃ 2) Conductor Material: Bare Copper 3) AWG Size: Customized 4) Cable Length: Customized 5) Battery Cable End: Cable lug, top post, battery terminal or customized. 6) Standard: UL758 7) Insulation:PVC 8) Insulation Color: Black, Red, Yellow etc. 9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
Construction
Conductor material: Bare Copper
Gauge: 500 – 6
Insulation material: TPE
Operating Temperature: -40°C to 90°C
Meets Requirements: NEC
Applications
Secondary voltage resistance welding cable leads.
Temporary power uses
National Electrical Code article 630 electric welders.
Power supply applications not exceeding 600 volts AC.
Features
Special stranding and packaging are available upon request.
Oil and Flame Resistant.
Custom print available upon request.
S.A.E J1127 Thermoplastic Elastomer Battery Cable
GAUGE | STRANDING | INSULATION | NOMINAL O.D. | STANDARD | APPROX. WEIGHT | ||||
THICKNESS | PACKAGE | ||||||||
in | mm | in | mm | in | mm | m | LBS/1000FT | kg/km | |
6 | 7*37/0.01 | 7*37/0.25 | 0.06 | 1.52 | 0.310 | 7.87 | 1000 | 113 | 168.3 |
4 | 7*52/0.01 | 7*52/0.25 | 0.06 | 1.52 | 0.345 | 8.76 | 1000 | 147 | 219.0 |
2 | 12*52/0.01 | 12*52/0.25 | 0.06 | 1.52 | 0.417 | 10.59 | 500 | 236 | 351.5 |
1 | 12*65/0.01 | 12*65/0.25 | 0.08 | 2.03 | 0.500 | 12.70 | 500 | 313 | 466.2 |
1/0 | 19*52/0.01 | 19*52/0.25 | 0.08 | 2.03 | 0.530 | 13.46 | 500 | 378 | 563.0 |
2/0 | 19*65/0.01 | 19*65/0.25 | 0.08 | 2.03 | 0.583 | 14.81 | 500 | 463 | 689.6 |
3/0 | 19*81/0.01 | 19*81/0.25 | 0.08 | 2.03 | 0.622 | 15.80 | 500 | 563 | 838.6 |
4/0 | 19*106/0.01 | 19*106/0.25 | 0.08 | 2.03 | 0.710 | 18.03 | 500 | 734 | 1093.3 |
250 | 19*133/0.01 | 19*133/0.25 | 0.12 | 3.05 | 0.855 | 21.72 | 500 | 938 | 1397.2 |
350 | 19*7*26/0.01 | 19*7*26/0.25 | 0.12 | 3.05 | 0.995 | 25.27 | 500 | 1282 | 1909.5 |
500 | 19*7*38/0.01 | 19*7*38/0.25 | 0.12 | 3.05 | 1.170 | 29.72 | 500 | 1840 | 2740.7 |
