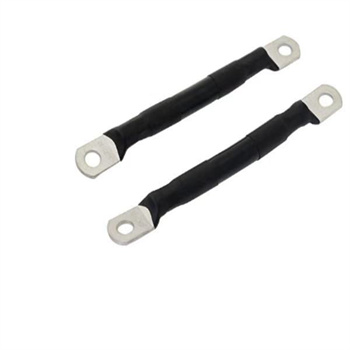

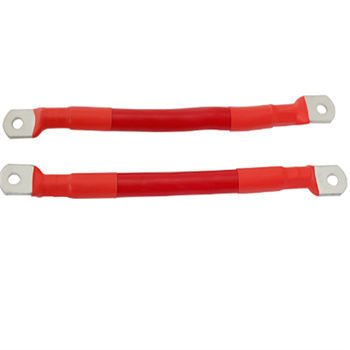

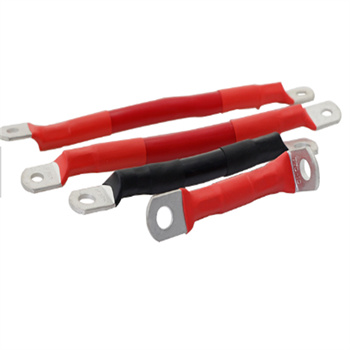

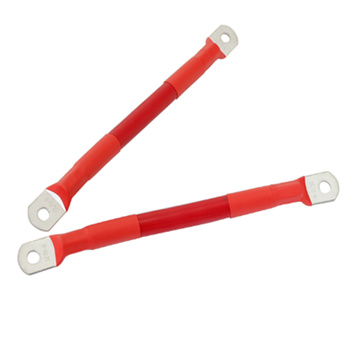

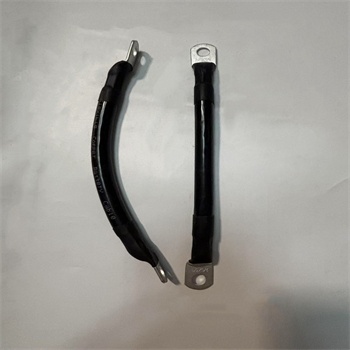

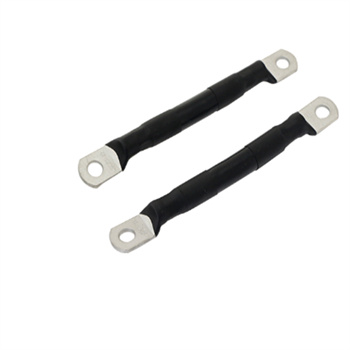

1.Conductor Material: Fully annealed bare stranded copper 2.Insulation Material: PVC 3.Maximum Voltage: 450/750 VDC 4.Cable Length: 30CM,60CM,100CM or customized 5.Sectional area:1x16mm2 or customized 6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc 7.Operating Temperature: -50°C to 105°C 8.Standards: RoHS,UL,ISO9001
1) Rated Temperature: -40℃ to 105℃
2) Conductor Material: Bare Copper
3) AWG Size: Customized
4) Cable Length: Customized

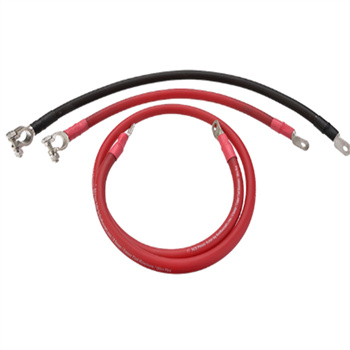

5) Battery Cable End: Cable lug, top post, battery terminal or customized.
6) Standard: UL758
7) Insulation:PVC
8) Insulation Color: Black, Red, Yellow etc.
9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
SGX Automotive Battery Cable/Primary Wire | |||||
AWG Size | Conductor Stranding | Nom. Insul. Thick. (in) | Nom. O.D. (in) | Approx LBS/MFT | SAE Spec |
6 | 133/0.0137 | 0.06 | 0.305 | 107 | SAE J-1127 |
4 | 133/0.0170 | 0.065 | 0.375 | 153 | SAE J-1127 |
2 | 133/0.0220 | 0.065 | 0.438 | 248 | SAE J-1127 |
1 | 259/0.0177 | 0.065 | 0.48 | 308 | SAE J1127 |
1/0 | 1026/0.010 | 0.065 | 0.525 | 383 | SAE J-1127 |
2/0 | 1254/30 | 0.065 | 0.575 | 470 | SAE J-1127 |
3/0 | 1615/30 | 0.078 | 0.654 | 589 | SAE J-1127 |
4/0 | 2052/.0100 | 0.078 | 0.706 | 766 | SAE J-1127 |

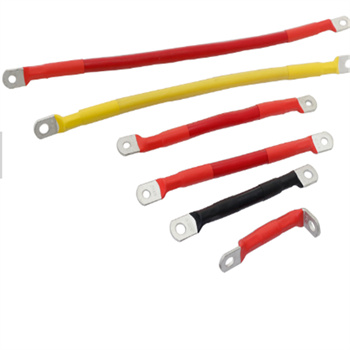

4/6AWG/GAUGE-Battery-Cables-Customized-Panel-Inverter-Battery-Wire-Cable
Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
Features:
1. High quality car battery cable.
2. Battery cable, 10AWG、8AWG、6AWG、4AWG etc are optional.
3. PVC jacket in various colors and transparent are optional.
4. Length: As your requests.
5. The cable can be printed with your specifications or logo.
6. One or two sample can be free if it available, but freight collect.
