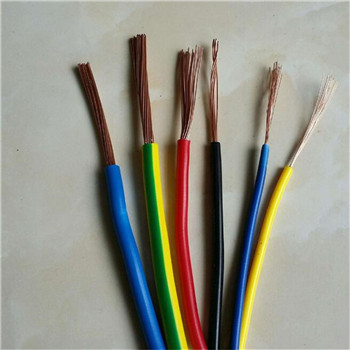

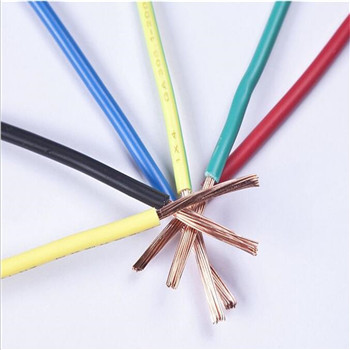

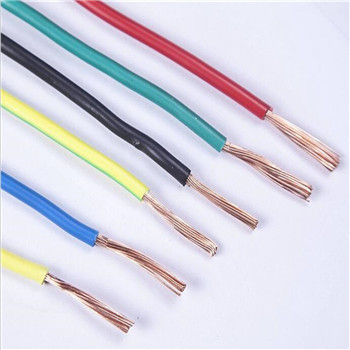

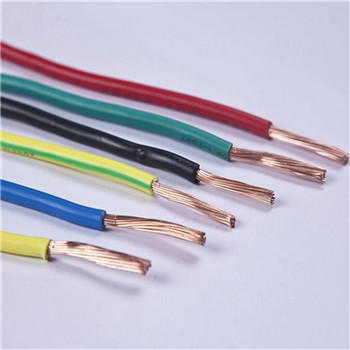

Cable Construction conductor: 99.99% oxygen-free copper wire, strand type; insulation: PVC
1)Conductor: Copper (70° C single core solid)
2)Insulation: PVC
3)Sheathed: Non
4)Rated voltage (U0/U): 300/500V 400/750V 220V
5)Standard: IEC60227-2003 or as per the customers' requests
6)Purpose: For internal wiring
7)The max continuous operating temperature of the conductor: 70° C
8)The ambient temperature for the cable installation: ≥ 0° C
9)The bending radius of the cable: (D=cable outer diameter, R=bending radius) A. D≤ 25mm, R≥ 4D B. D>25mm, R≥ 6D"

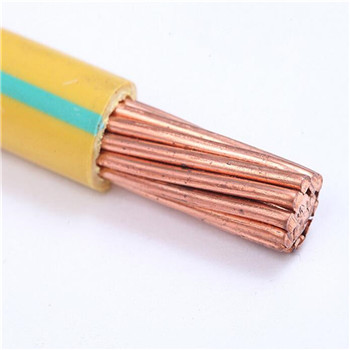

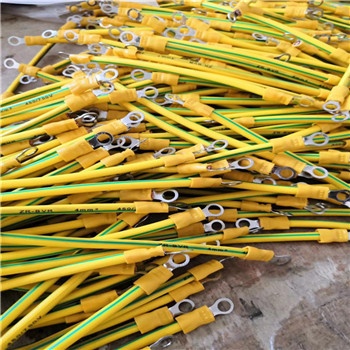

solid,stranded Conductor Type earth grounding cable
450/750V CU/PVC/PVC (BS 6004) Electrical Cable | ||||||
section area (mm2) | Class of Conductor | Insulation Thickness(mm) | Sheath Thickness (mm) | OD cable (mm) | Weight of cable (Kg/km) | Max. DC-resist conductor 20℃(Ohm/km) |
1.5 | 5 | 0.9 | 0.8 | 4.91 | 38 | 13.3 |
2.5 | 5 | 0.9 | 0.8 | 5.4 | 49 | 7.98 |
4 | 5 | 1 | 0.9 | 6.25 | 71 | 4.95 |
6 | 5 | 1.1 | 0.9 | 7.6 | 101 | 3.3 |
10 | 5 | 1.2 | 1.1 | 8.56 | 152 | 1.91 |
16 | 5 | 1.2 | 1.1 | 9.8 | 215 | 1.21 |
25 | 5 | 1.4 | 1.1 | 11.5 | 307 | 0.78 |
35 | 5 | 1.4 | 1.1 | 12.5 | 405 | 0.554 |
50 | 5 | 1.4 | 1.4 | 15.1 | 580 | 0.386 |
0.6/1.0kV CU/PVC/PVC (BS 6004) Electrical Cable | ||||||
section area (mm2) | Class of Conductor | Insulation Thickness(mm) | Sheath Thickness (mm) | OD cable (mm) | Weight of cable (Kg/km) | Max. DC-resist conductor 20℃(Ohm/km) |
70 | 5 | 1.4 | 1.4 | 17 | 769 | 0.272 |
95 | 5 | 1.6 | 1.5 | 19.1 | 1008 | 0.21 |
120 | 5 | 1.6 | 1.8 | 21.6 | 1282 | 0.164 |
150 | 5 | 1.8 | 1.8 | 23.4 | 1571 | 0.132 |
185 | 5 | 2 | 1.8 | 25.5 | 1895 | 0.108 |
240 | 5 | 2.2 | 1.8 | 28.5 | 2435 | 0.081 |
300 | 5 | 2.4 | 2 | 31.2 | 3050 | 0.065 |
400 | 5 | 2.6 | 2.1 | 35.3 | 4035 | 0.05 |
