Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Cable design
Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water ,
UV resistant
Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C
Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V
AC-test-voltage: 6.5KV
Application
SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems

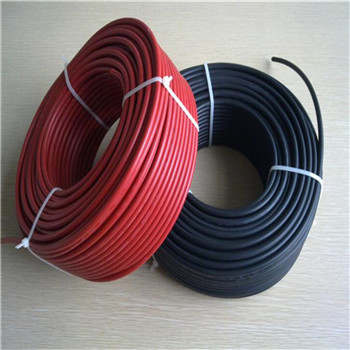

4mm2, 6mm2, 10mm2 TUV Approved DC Cable for PV System Wire Cable 0.6/1.0kV

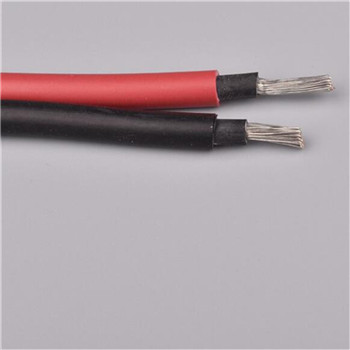

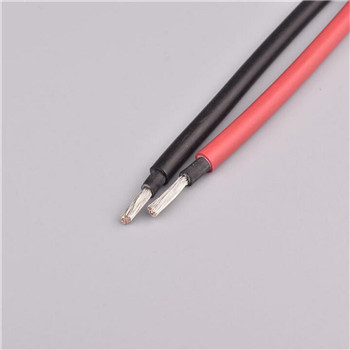

Single-Core Solar Cable | ||||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Approx. Weight (kg/km) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×4 | 56/0.30 | 0.8 | 0.8 | 5.8±0.3 | 68 | 4.95 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.6±0.3 | 94 | 3.3 |

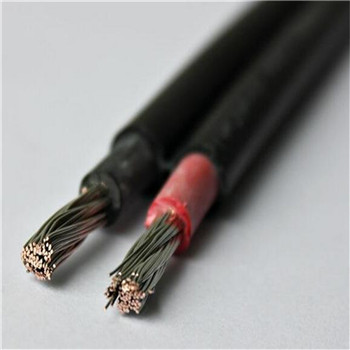

Twin Core Solar cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
2×2.5 | 49/0.25 | 0.7 | 0.8 | 5.0±0.3×10.6±0.3 | 8.21 |
2×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3×13.8±0.3 | 5.09 |
2×6 | 84/0.30 | 0.8 | 1.0 | 7.2±0.3×15.3±0.3 | 3.39 |
2×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3×19.2±0.3 | 1.95 |
Feature:
Dual Wall insulation , Electron beam cross-linked
Excellent reslstance to U.V.,water.ozone, flulds; salt.General Weathering
Excellent resistance to abrasion
Halogen free,flame retardant,low toxicity
Excelent flexibility and strippn performance
High current carrying capacity
