Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Product Description
1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3.Halogen free and low smoke, Rohs standard.
4.UV resistance.
5.Temperature rating:-40Degree to 125Degree, cold resistance.
6.Certificate: TUV CCC
7.Power cable for photovoltaic system.

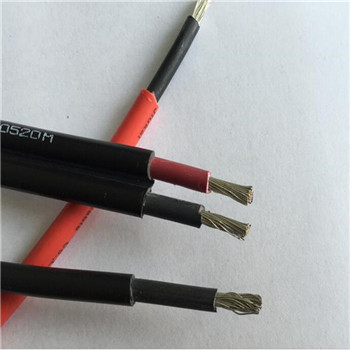

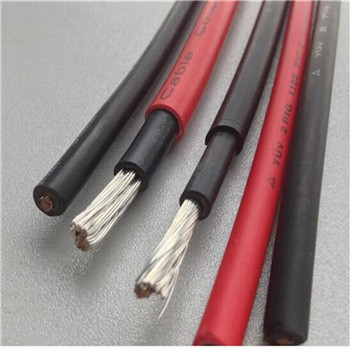

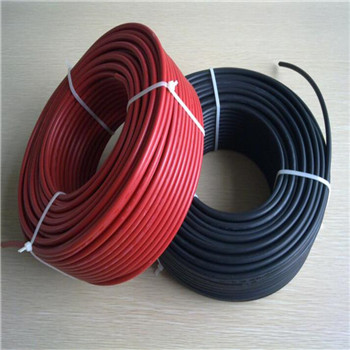

4mm2, 6mm2, 10mm2 TUV Solar Cable For Solar Energy System 1500V
Single-Core Solar Cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×2.5 | 49/0.25 | 0.8 | 0.8 | 5.4±0.3 | 8.21 |
1×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3 | 5.09 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.8±0.3 | 3.39 |
1×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3 | 1.95 |
1×16 | 126/0.40 | 1.0 | 1.0 | 10.0±0.3 | 1.24 |
1×25 | 196/0.40 | 1.2 | 1.2 | 12.2±0.5 | 0.795 |
1×35 | 276/0.40 | 1.2 | 1.2 | 13.6±0.5 | 0.565 |

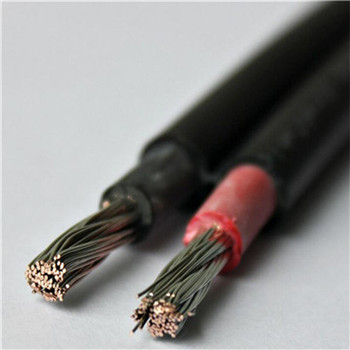

Twin Core Solar cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
2×2.5 | 49/0.25 | 0.7 | 0.8 | 5.0±0.3×10.6±0.3 | 8.21 |
2×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3×13.8±0.3 | 5.09 |
2×6 | 84/0.30 | 0.8 | 1.0 | 7.2±0.3×15.3±0.3 | 3.39 |
2×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3×19.2±0.3 | 1.95 |
Main feature:
1.Temperature range for application -40°C up to 90°C, max.temperature at conductor 120°C
2.Electron beam cross-linked material does not melt or flow at high temperatures
3.The permitted short-circuit-temperature refer to a period of 5s is 200°C
4.High resistance against UV,ozone and hydrolysis
5.Flexible,easy to strip
6.Dual wall insulation.Electron beam cross-linked
7.Excellent resistance to U.V,oil,greases,oxygen and ozone
8.Excellent resistance to abrasion
9.Halogen free, flame retardant,low toxicity
10.Excellent flexibility and stripping performance
11.High current carring capacity
