1.  DIN V VDE V 0126-3/12.06

2. 2. highly robustness,UV-Resistance,

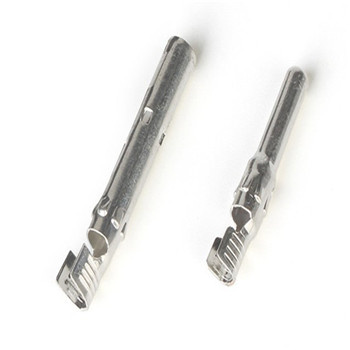

3. Connector adopts touch and insertion of reed with inner-knob type.

4. Auto-lock equipment of male and female points enable connection more easy and reliable.

5. Popular figure suit most of field installation

6. Simple on-site processing

7. Accommodates PV cable with deferent insulation diameters

8. High current carrying capacity

Technical Data

Rated Current 30A(2.5-6mm2),

Rated Voltage 1000VDC/600VDC

Test Voltage 6000V(50Hz,1min)

Overvoltage Type/Pollution Degree CAT III /2

Contact Resistance Of Plug Connector ImΩ

Contact Material Copper, Tin-plated

Insulation Material PPO

Degree Of Protection IP2X/IP67

Flame Class UL94-VO

Safety Class II

Suitable Cable OD 4.5-8.5(2.5-6.0mm2)
