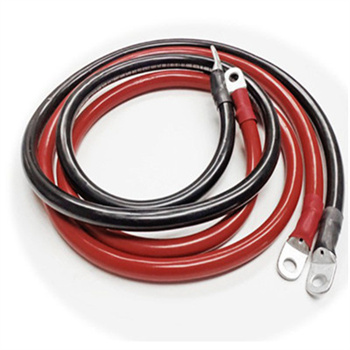

Automotive Battery Cable can be used in a variety of applications and is supplied to a number of industries.

We offer battery cables SGT and STX/SGX. All auto battery cable options meet SAE J-1127, Ford and Chrysler

specifications.

Battery wire also comes in a variety of AWG sizes.

Our battery cable features bare copper conductors and is available in standard battery circuit black and red.

SGT cable can be used in starter or battery ground circuits.

It comes with Polyvinylchloride (PVC) insulation and can withstand temperatures up to 105ºC.

Flex SGT wire is available with higher stranding.

STX wire or SGX wire can be used for automotive starters or battery grounds where resistance to abrasion,

heat and aging is needed.

It has Cross-Linked Polyethylene (XLPE) insulation and can withstand temperatures up to 125ºC.

SGT Automotive Battery Cable/Automotive Starter, Ground or Battery Cable

Construction:

Conductor: Bare copper

Insulation: Polyvinylchloride (PVC)

Color & Print Options: Available in standard battery circuit colors of black and red with optional custom

printing available.

Stranding Options: SGT Cable is available with higher stranding.

Applications:

Type SGT Battery Cable may be used in starter or battery ground circuits in accordance with SAE J-1127.

Recommended temperature range is -40°C to +105°C.

Manufactured to meet Ford (M1L-56A) and Chrysler (MS-3450)

Noted:

Primary auto wire is designed for many different automotive environments and to endure the harsh conditions

of a variety of automotive applications. Allied's automotive wiring ranges from commercial to recreational vehicles.

Our Primary Wire is top of the line and has excellent features.

All of primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products in our inventory

 include, SXL, GXL, TXL, GPT, TWP and HDT.

While some primary wire is rated for general use, such as circuit wiring, others are used in more specific scenarios,

such as GXL which is mostly used in trucks and trailers.

SXL wire is used in applications that have a need for high heat resistance and high temperature performance.

 It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C.

 We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG to 4/0 AWG.

1.Conductor Material: Fully annealed bare stranded copper

2.Insulation Material: PVC

3.Maximum Voltage: 450/750 VDC

4.Cable Length: 30CM,60CM,100CM or customized

5.Sectional area:1x16mm2 or customized

6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc

7.Operating Temperature: -50°C to 105°C

8.Standards: RoHS,UL,ISO9001

·

 Features:

· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather

· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight

· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.

Services & Advantages

1.OEM / ODM

2. Enough stock to meet fast delivery.

3. 2 year's quality guarantee.

4. Alibaba trade assurance.

5. Form E, FTA,C/O is available.

6. Good after-sale service team to solve problems until  customer received goods well

7. Inspect every product before delivery

8. Welcome to visit our factory
