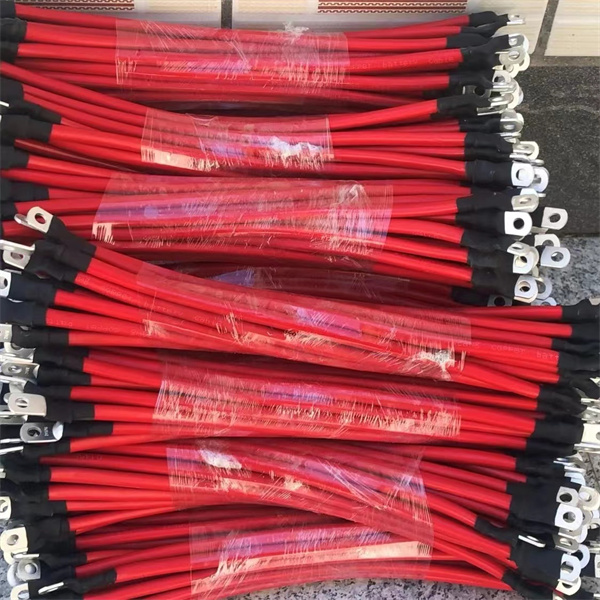

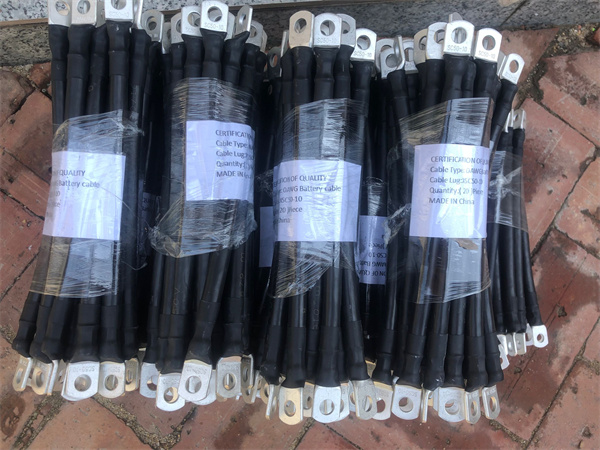

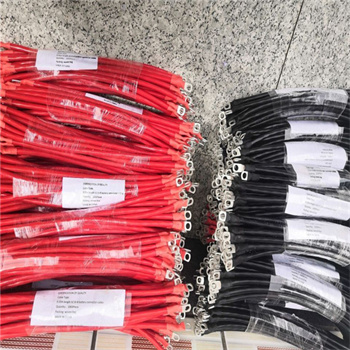

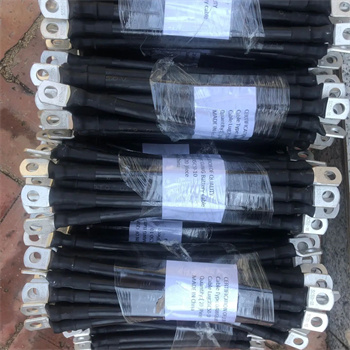

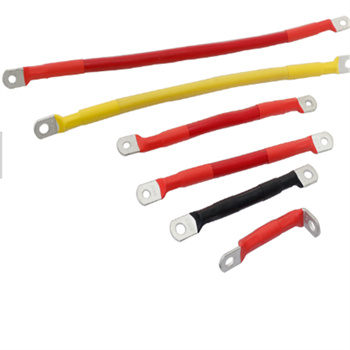

Red,black 5/16inch terminal 12inch Long 2-Gauge Battery Cable and Tinned Lug Assembly

Red,black 5/16inch terminal 12inch Long 2-Gauge Battery Cable and Tinned Lug Assembly

Red,black 5/16inch terminal 12inch Long 2-Gauge Battery Cable and Tinned Lug Assembly

Inquiry Now

Construction:

Conductor: Bare copper

Insulation: Cross-Linked Polyethylene (XLPE)

Options: Available in stranded battery circuit colors of black and red with optional custom printing available



Features:

Can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed.

Meets the requirements of SAE J-1127

SGX wire has a recommended temperature range of -40°C to +125°C



SGX Automotive Battery Cable/Primary Wire

AWG Size

Conductor Stranding

Nom. Insul. Thick. (in)

Nom. O.D. (in)

Approx LBS/MFT

SAE Spec

6

133/0.0137

0.06

0.305

107

SAE J-1127

4

133/0.0170

0.065

0.375

153

SAE J-1127

2

133/0.0220

0.065

0.438

248

SAE J-1127

1

259/0.0177

0.065

0.48

308

SAE J1127

1/0

1026/0.010

0.065

0.525

383

SAE J-1127

2/0

1254/30

0.065

0.575

470

SAE J-1127

3/0

1615/30

0.078

0.654

589

SAE J-1127

4/0

2052/.0100

0.078

0.706

766

SAE J-1127



Noted:

Primary auto wire is designed for many different automotive environments and to endure the

harsh conditions of a variety of automotive applications. Allied's automotive wiring ranges from

commercial to recreational vehicles.



Our Primary Wire is top of the line and has excellent features.

All of primary automotive wire1 meets SAE J-1128, Ford and Chrysler specifications. Products

 in our inventory include, SXL, GXL, TXL, GPT, TWP and HDT.



While some primary wire is rated for general use, such as circuit wiring, others are used in more

specific scenarios,

such as GXL which is mostly used in trucks and trailers.

SXL wire is used in applications that have a need for high heat resistance and high temperature

 performance.

 It is therefore rated up to 125°C whereas GPT and HDT are rated to only 80°C.

 We also boast a range of sizes for certain types of automotive primary wire that include 22 AWG

 to 4/0 AWG.
