Conductor: Tinnd Copper Insulation: XLPO Insulation Color: Red Temperature Range: -20°C to +90°C Nominal Voltage: 0.6/1KV Test Voltage: 3.5 KV Standard: TUV
Application:
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter
Standard:
Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red,Blue
Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years

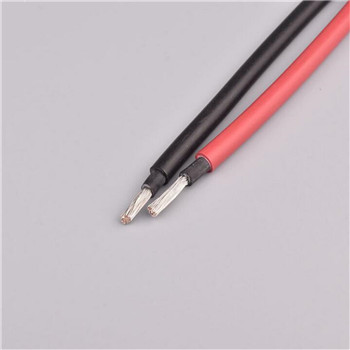

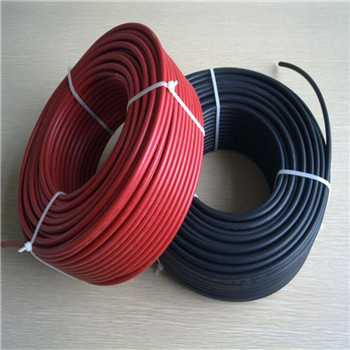

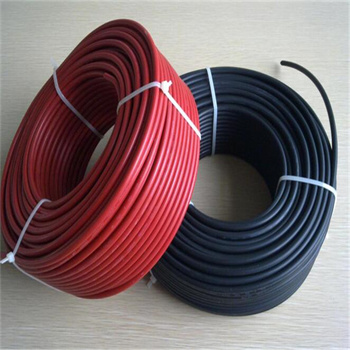

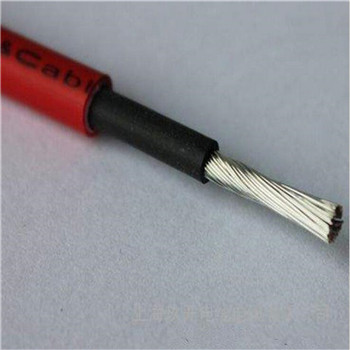

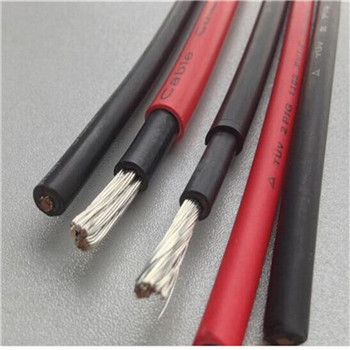

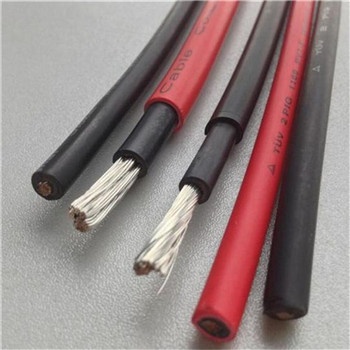

4mm2,6mm2,10mm2,16mm2,25mm2 red, black EN50618 H1Z2Z2-K solar dc cable 1500V

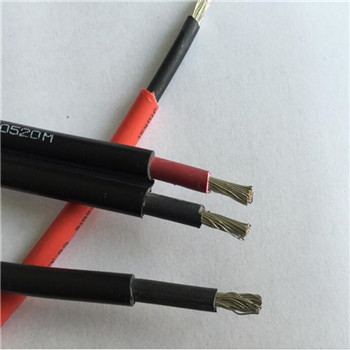

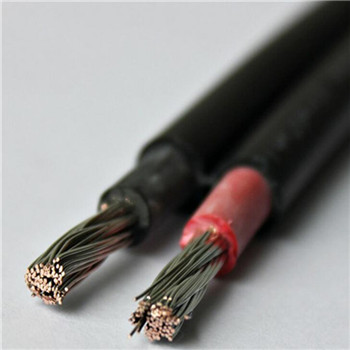

Twin Core Solar cable | |||||||
Cable Type | Nominal area | Core construction | Conductor Dia | Outer Dia | Max. Conductor Resis(20ºC) | Rated voltage | Rated current |
(mm2) | Strand/Dia (mm) | mm | mm | Ω/Km | AC/DC(V) | (A) | |
2x1.5mm2 | 1.5 | 30X0.25 | 1.6 | 5.80*9.30 | 13.9 | 1000/1800 | 20 |
2x2.5mm2 | 2.5 | 48X0.25 | 2 | 6.20*9.90 | 8.06 | 1000/1800 | 30 |
2x4.0mm2 | 4 | 56X0.30 | 2.6 | 6.90*11.30 | 4.97 | 1000/1800 | 50 |
