Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Type: 1X4mm2
Conductor Material: Tin copper
Insulating Materials :PV XLPE
Insulating the thin thickness(mm): 0.87mm
Insulation color: Black
Sheath outside diameter: 6.15±0.05mm
Sheath color: Black/Red
Printed words: TUV 2PFG 1169 PV1—F 1X4.0mm2
Cable length: Customized
solar cable specifications | |

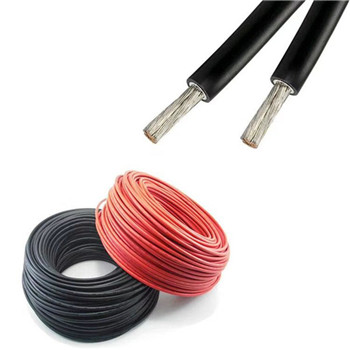

Core Conductor: | Tinned annealed copper(stranded core) |
Popular Sizes: | 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
Cable Conductor: | Stranded tinned annealed copper |
Insulation: | XLPE |
Jacket: | XLPE(black, red) |
Nominal Volvatage: | Uo/U= 600/1000VAC, 1000/1800VDC |
Test Voltage: | 6500V, 50HZ, 5Min |
Fire Performance: | IEC 60332-1, UL1581 VW-1 |
Bending Radius | Fixed installation>4X, Occasionally moved>5X |
Solar Cable | ||||
Size (AWG) | Conductor Strand (mm) | 600V Cable OD (mm) | 1000V & 2000V Cable OD (mm) | Max DC Resistance (20°C) (Ω/km) |
12 | 65/0.254 | 5.4 | 6.2 | 5.64 |
10 | 105/0.254 | 6.2 | 6.9 | 3.546 |
8 | 168/0.254 | 7.9 | 8.4 | 2.23 |
6 | 266/0.254 | 9.8 | 10.3 | 1.403 |
4 | 420/0.254 | 11.7 | 11.7 | 0.882 |
2 | 665/0.254 | 13.3 | 13.4 | 0.5548 |
1 | 836/0.254 | 15.2 | 16.1 | 0.4398 |
Features :
1. For outdoor use and it is moisture,UV and corrosion resistant.

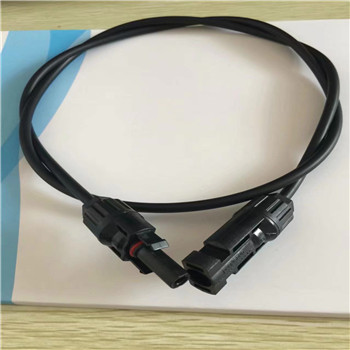

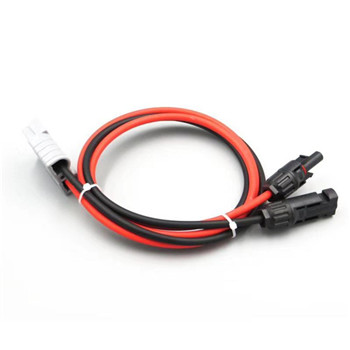

2. Solar Panel Male and Female Hard plastic connector at the end.

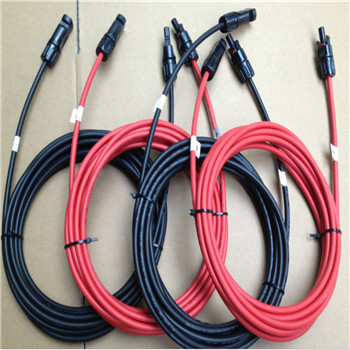

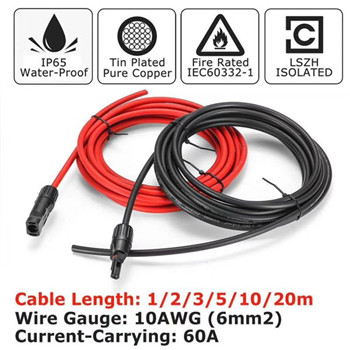

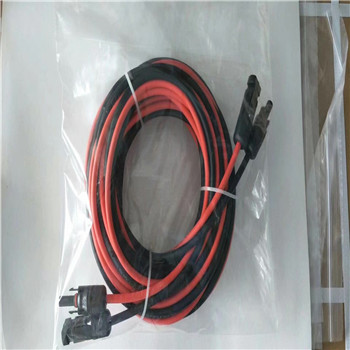

3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.
