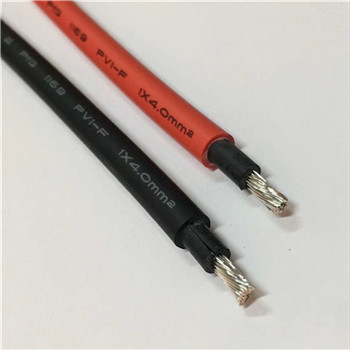

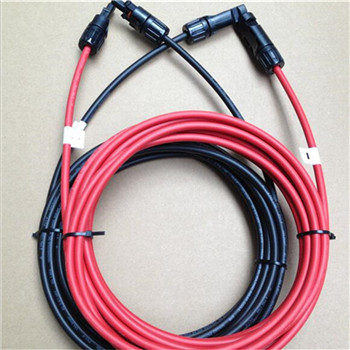

Core Conductor:

Tinned annealed copper(stranded core)

Popular Sizes:

 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2

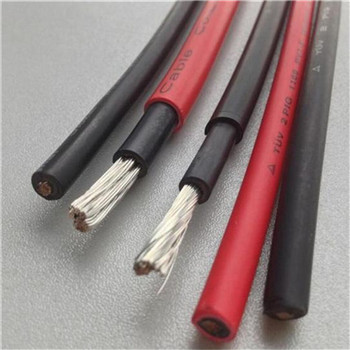

Cable Conductor:

Stranded tinned annealed copper

Insulation:

XLPE

Jacket:

XLPE(black, red)

Nominal Volvatage:

Uo/U= 600/1000VAC, 1000/1800VDC

Test Voltage:

6500V, 50HZ, 5Min

Fire Performance:

IEC 60332-1, UL1581 VW-1

Bending Radius

Fixed installation>4X,                               Occasionally moved>5X

Cable  Size  (mm2)

 Conductor  Strand  (mm)

Nominal insulation thickness (mm)

Nominal sheath thickness   (mm)

Overall  Dia                         (mm)

Max. Conductor Resis(20ºC)             (Ω/Km)

 1×2.5

 49/0.25

 0.8

 0.8

 5.4±0.3

 8.21

 1×4

 56/0.30

 0.8

 0.9

 6.2±0.3

 5.09

 1×6

 84/0.30

 0.8

 0.9

 6.8±0.3

 3.39

 1×10

 84/0.40

 1.0

 1.0

 9.0±0.3

 1.95

 1×16

 126/0.40

 1.0

 1.0

 10.0±0.3

 1.24

 1×25

 196/0.40

 1.2

 1.2

 12.2±0.5

 0.795

 1×35

 276/0.40

 1.2

 1.2

 13.6±0.5

 0.565

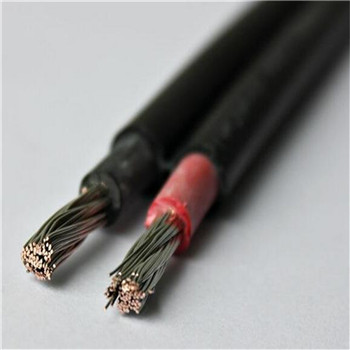

 Twin Core  Solar cable

Cable  Size  (mm2)

 Conductor  Strand  (mm)

Nominal insulation thickness (mm)

Nominal sheath thickness   (mm)

Overall  Dia       (mm)

Max. Conductor Resis(20ºC)                (Ω/Km)

 2×2.5

 49/0.25

 0.7

 0.8

 5.0±0.3×10.6±0.3

 8.21

 2×4

 56/0.30

 0.8

 0.9

 6.2±0.3×13.8±0.3

 5.09

 2×6

 84/0.30

0.8

 1.0

 7.2±0.3×15.3±0.3

 3.39

 2×10

 84/0.40

 1.0

 1.0

 9.0±0.3×19.2±0.3

 1.95
