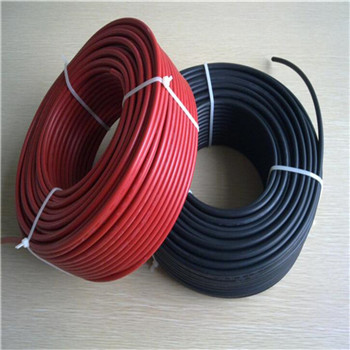

14AWG 12AWG 10AWG XLPE PV1-F DC solar cable pv wire
14AWG 12AWG 10AWG XLPE PV1-F DC solar cable pv wire

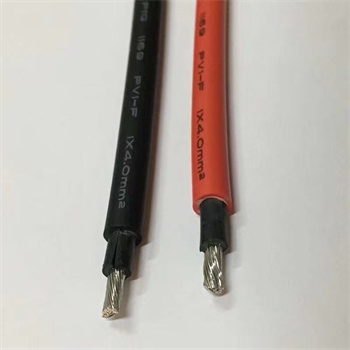

1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3.Halogen free and low smoke, Rohs standard.
4.UV resistance.
5.Temperature rating:-40Degree to 125Degree, cold resistance.
6.Certificate: TUV UL CCC CSA
7.Power cable for photovoltaic system.
Feature:
Dual Wall insulation , Electron beam cross-linked
Excellent reslstance to U.V.,water.ozone, flulds; salt.General Weathering
Excellent resistance to abrasion
Halogen free,flame retardant,low toxicity
Excelent flexibility and strippn performance
High current carrying capacity
solar cable specifications | |
Core Conductor: | Tinned annealed copper(stranded core) |
Popular Sizes: | 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
Cable Conductor: | Stranded tinned annealed copper |
Insulation: | XLPE |
Jacket: | XLPE(black, red) |
Nominal Volvatage: | Uo/U= 600/1000VAC, 1000/1800VDC |
Test Voltage: | 6500V, 50HZ, 5Min |
Fire Performance: | IEC 60332-1, UL1581 VW-1 |
Bending Radius | Fixed installation>4X, Occasionally moved>5X |
Solar Cable | ||||
Size (AWG) | Conductor Strand (mm) | 600V Cable OD (mm) | 1000V & 2000V Cable OD (mm) | Max DC Resistance (20°C) (Ω/km) |
12 | 65/0.254 | 5.4 | 6.2 | 5.64 |
10 | 105/0.254 | 6.2 | 6.9 | 3.546 |
8 | 168/0.254 | 7.9 | 8.4 | 2.23 |
6 | 266/0.254 | 9.8 | 10.3 | 1.403 |
4 | 420/0.254 | 11.7 | 11.7 | 0.882 |
2 | 665/0.254 | 13.3 | 13.4 | 0.5548 |
1 | 836/0.254 | 15.2 | 16.1 | 0.4398 |
