Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Cable design

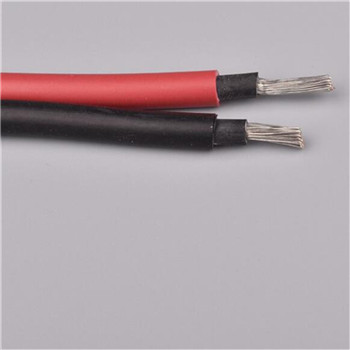

Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water ,
UV resistant
Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C
Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V
AC-test-voltage: 6.5KV
Application
SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
TUV PV1-F 4mm 6mm twin solar cable DC Rated for solar panel solar system

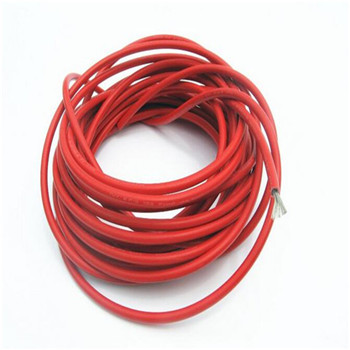

Single-Core Solar Cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×2.5 | 49/0.25 | 0.8 | 0.8 | 5.4±0.3 | 8.21 |
1×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3 | 5.09 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.8±0.3 | 3.39 |
1×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3 | 1.95 |
1×16 | 126/0.40 | 1.0 | 1.0 | 10.0±0.3 | 1.24 |
1×25 | 196/0.40 | 1.2 | 1.2 | 12.2±0.5 | 0.795 |
1×35 | 276/0.40 | 1.2 | 1.2 | 13.6±0.5 | 0.565 |

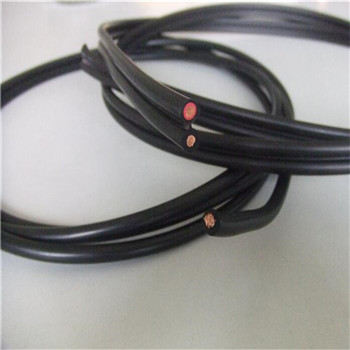

Twin Core Solar cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
2×2.5 | 49/0.25 | 0.7 | 0.8 | 5.0±0.3×10.6±0.3 | 8.21 |
2×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3×13.8±0.3 | 5.09 |
2×6 | 84/0.30 | 0.8 | 1.0 | 7.2±0.3×15.3±0.3 | 3.39 |
2×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3×19.2±0.3 | 1.95 |
Features :
1. For outdoor use and it is moisture,UV and corrosion resistant.
2. Solar Panel Male and Female Hard plastic connector at the end.

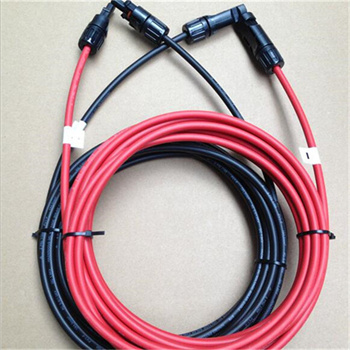

3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.
