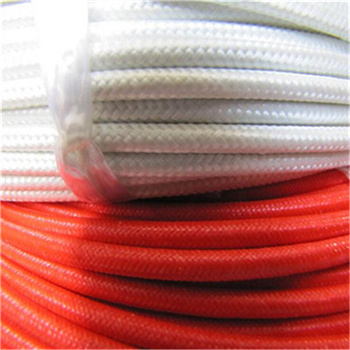

silicone rubber coated high temperature cable with fiberglass braided 180 degree celsius

Inquiry Now

Description

Application:
widely used in electronic appliances, lighting, combustion and other high temperature environment

Technical Parameters:

• Rated temperature: -60 ℃ ∽180 ℃

• Rated voltage: 300 / 500V

• conductor material: single or multi-strand tinned copper wire

• insulating materials: silicon rubber + fiberglass braided + silicon rubber coating

• Colors: red, yellow, blue, white, black, green, brown, gray, purple, yellow, etc.

silicone rubber coated high temperature cable with fiberglass braided 180 degree celsius

AWG	Condutor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness s(mm)	Outer Diameter (mm)	Max. conductor Resistance DC20℃ （Ω/㎞）	Packing (m)
16	7×0.50	0.39	0.15	2.58	14.6	305
17	32×0.20	0.39	0.15	2.42	18.3	305
18	7×0.40	0.39	0.15	2.28	23.2	305
20	7×0.32	0.39	0.15	2.04	36.7	305
22	7×0.26	0.39	0.15	1.86	59.4	610
24	7×0.20	0.39	0.15	1.68	94.2	610
26	7×0.16	0.39	0.15	1.56	150	610
28	7×0.12	0.39	0.15	1.14	239	610
30	7×0.10	0.39	0.15	1.08	381	610
