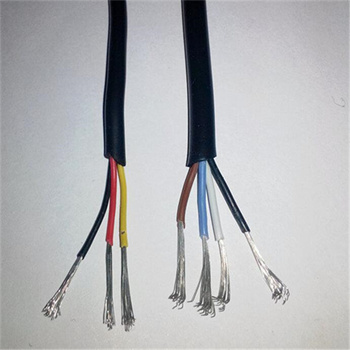

SIHF cable silicone power cord electrical cable

Description

Rated voltage: 300/500V
Working temperature: -60 ~ 200 ℃,

Construction:
conductor: solid or stranded tinned copper wire,
insulation: silicon rubber,
color: red/yellow/blue/white/black/green/brown

Characteristic:
it has excellent high temperature &low temperature resistance, excellent electrical insulation properties,
excellent chemical stability, high voltage resistance, ageing resistance, long service life.And soft, easy to
install.

Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring,
lamps and lanterns, burner and high temperature environment.

SIHF cable silicone power cord electrical cable

Cable Size (mm2)	Conductor structure (No./mm)	Cable OD (mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 1,5	30 x 0,26	8,2	69	103
3 x 1,5	30 x 0,26	8,6	85	128
4 x 1,5	30 x 0,26	9,4	103	158
5 x 1,5	30 x 0,26	10,2	127	188
7 x 1,5	30 x 0,26	11,2	162	250
12 x 1,5	30 x 0,26	15,4	253	433
3 x 2,5	50 x 0,26	10,3	127	189
4 x 2,5	50 x 0,26	11,4	153	249
5 x 2,5	50 x 0,26	12,4	184	293
