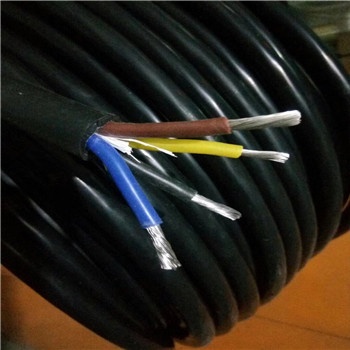

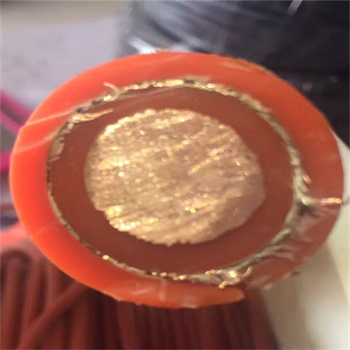

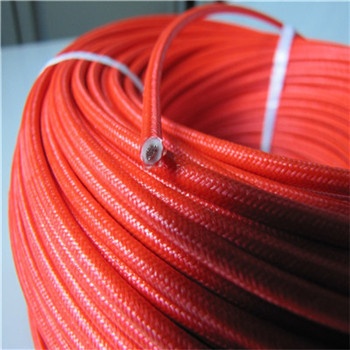

Silicone Rubber Sheathed Stranded Conductor Power Wire Cable

Description

Applications:

1.This product is suitable for the cable of AC 50Hz, rated voltage of 0.6 / 1kV (the maximum voltage 1.2kV) for power transmission.
2.It is widely used in metallurgy, electric power, petrochemical, electronics, car manufacturing and other high-temperature resistant

occasions.

Product Features:

This product has the following properties: radiation resistance, heat-resistance, cold-resistance, acid and alkali-resistance,

corrosive gases resistance and water resistance etc..

Operating Property:
Items	Description
Rated Voltage	Frequency AC rated voltage is 0.6 / 1kV. The maximum
Rated Voltage	voltage of using AC system is no more than 1.2 kv
Operating Temperature	The long-term maxmium operating temperature of cable：conductor is 180 ºC.
Environment Temperature	Minimum environment temperature: fixed laying -60 ºC,
Environment Temperature	non-fixed laying -20 ºC.
Laying temperature	Laying cable temperature should not be lower than -20 ºC.
Bending radius	The bending radius of single-core cable is not more than 20D,
Bending radius	the bending radius of multi-cores cable is not more than 15D.
Storage	Finished cable should be stored at 0 ~ 40 ºC, humidity is
	below 85% of the environment, and avoid direct sunlight
	and the rain, keep ventilation and dry environment.
	According to the above requirements for storage and use,
	the cable can be used for more than 25 years long.
Installation Instruction	When installed, the environment temperature should not be
	lower than -20 ºC. if the environment temperature is lower
	-20 ºC, the cable should be preheated before installation.
	To avoid the machnical damage of the internal cable,
	the bending radius should be controlled strictly.The bending
	radius of single core cable is not more than 20D, the bending
	radius of multi-cores cable is not more than 15D.
	("D "means the out diameter of cable)

Product Specification
Spec(mm2)	Conductor No./Dia	Conductor diameter(mm)	Insulation Thickness (mm)	Tape Spec	Sheath Thickness (mm)	Outer diameter(mm)	Weight (kg/km)
1×10	7/1.35	4.05	1	20×0.17	1.4	9.4	162.5
1×16	7/1.66	4.98	1	20×0.17	1.4	10.3	218.5
1×25	7/2.14	6.42	1.2	25×0.17	1.4	12.1	333.7
1×35	7/2.52	7.56	1.2	25×0.17	1.4	13.3	435.4
1×50	10/2.52	8.4	1.4	30×0.17	1.4	14.5	569.9
1×70	14/2.52	10	1.4	35×0.17	1.4	16.1	761.2
1×95	19/2.52	11.6	1.6	40×0.17	1.5	18.3	1029.3
1×120	24/2.52	13	1.6	40×0.17	1.5	19.7	1265.9
1×150	30/2.52	14.6	1.8	45×0.17	1.6	21.9	1568.8
1×185	37/2.52	16.2	2	50×0.17	1.7	24.1	1924.8
1×240	48/2.52	18.5	2.2	60×0.17	1.8	27	2470.7
1×300	61/2.52	20.6	2.4	60×0.17	1.9	29.7	3106
2×1.5	1/1.38	1.38	1	20×0.17	1.8	10.9	148.7
2×2.5	1/1.78	1.78	1	20×0.17	1.8	11.7	183.7
2×4	1/2.25	2.25	1	20×0.17	1.8	12.7	232.9
2×6	1/2.76	2.76	1	25×0.17	1.8	13.7	292.8
2×10	7/1.35	4.05	1	30×0.17	1.8	16.3	434.9
2×16	7/1.66	4.98	1	35×0.17	1.8	18.1	579.9
2×25	7/2.14	6.42	1.2	45×0.17	1.8	21.7	888.9
2×35	7/2.52	7.56	1.2	50×0.17	1.8	24.1	1154.1
2×50	10/2.52	8.4	1.4	55×0.17	1.8	26.5	1490.6
2×70	14/2.52	10	1.4	60×0.17	1.9	29.9	1988.6
2×95	19/2.52	11.6	1.6	60×0.17	2	34.1	2672.6
2×120	24/2.52	13	1.6	60×0.17	2.1	37.1	3277.5
2×150	30/2.52	14.6	1.8	60×0.17	2.2	41.3	4067.4
2×185	37/2.52	16.2	2	60×0.17	2.4	45.7	5002.4
2×240	48/2.52	18.5	2.2	60×0.17	2.5	51.3	6405.2
2×300	61/2.52	20.6	2.4	60×0.17	2.7	56.7	8020.3
3×1.5	1/1.38	1.38	1	20×0.17	1.8	11.4	170.5
3×2.5	1/1.78	1.78	1	20×0.17	1.8	12.3	216.3
