Galvanized steel wire outer screened silicone multicore cable

Technical data

Special silicone multicore cable with higher

heat-resistance range adapted to

DIN VDE 0250-1 and

DIN VDE 0285-525-2-83 /

DIN EN 50525-2-83

Temperature range

-60°C to +180°C

(for short time +220°C)

Temperature limit

at the conductor in operation +180°C

Nominal voltage U0/U 300/500 V

Test voltage 2000 V

Breakdown voltage min. 5000 V

Insulation resistance

min. 200 MOhm x km

Power rating

at ambient temperature up to +145°C to

DIN VDE 0100 for higher temperatures valid:

150°C - load value 100%

155°C - load value 91%

160°C - load value 82%

165°C - load value 71%

170°C - load value 58%

175°C - load value 41%

Minimum bending radius

flexing 10x cable Ø

fixed installation 5x cable Ø

Radiation resistance

up to 20x106 cJ/kg (up to 20 Mrad)

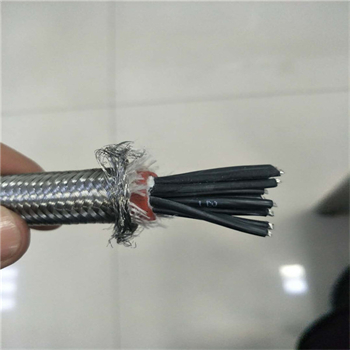

Cable structure

Tinned copper conductor, fine wire

acc. to DIN VDE 0295 cl.5 /

BS 6360 cl.5 / IEC 60228 cl.5

Core insulation of silicone

Core identification to DIN VDE 0293-308

- up to 5 cores coloured

- from 6 cores, black with continuous

   white numbering

GN-YE conductor, 3 cores and above

Cores stranded in layers with

optimal lay length

Sheath of silicone

Glass fibre tape over the sheath

Galvanized steel wire outer braiding

Silicone cables  screened with steel braiding were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant for permanent temperature up to +180°C, for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables can be used at temperatures down to -60°C. Silicone cables are halogen-free cables and are especially suited for installation in power stations. They have also found their uses in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. The screened steel braiding ensures a disturbance-free transmission of signals and impulses
