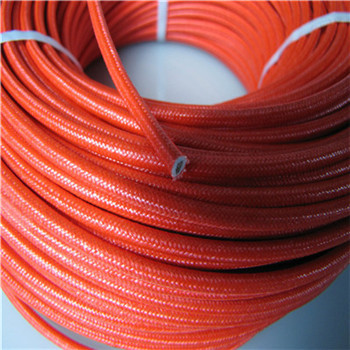

silicone rubber coated high temperature cable with fiberglass braided 180 degree celsius
Application:
widely used in electronic appliances, lighting, combustion and other high temperature environment
Technical Parameters:
• Rated temperature: -60 ℃ ∽180 ℃
• Rated voltage: 300 / 500V
• conductor material: single or multi-strand tinned copper wire
• insulating materials: silicon rubber + fiberglass braided + silicon rubber coating
• Colors: red, yellow, blue, white, black, green, brown, gray, purple, yellow, etc.
silicone rubber coated high temperature cable with fiberglass braided 180 degree celsius
AWG | Condutor Construction (mm) | Insulation Thickness (mm) | Sheath Thickness s(mm) | Outer Diameter (mm) | Max. conductor Resistance DC20℃ （Ω/㎞） | Packing (m) |
16 | 7×0.50 | 0.39 | 0.15 | 2.58 | 14.6 | 305 |
17 | 32×0.20 | 0.39 | 0.15 | 2.42 | 18.3 | 305 |
18 | 7×0.40 | 0.39 | 0.15 | 2.28 | 23.2 | 305 |
20 | 7×0.32 | 0.39 | 0.15 | 2.04 | 36.7 | 305 |
22 | 7×0.26 | 0.39 | 0.15 | 1.86 | 59.4 | 610 |
24 | 7×0.20 | 0.39 | 0.15 | 1.68 | 94.2 | 610 |
26 | 7×0.16 | 0.39 | 0.15 | 1.56 | 150 | 610 |
28 | 7×0.12 | 0.39 | 0.15 | 1.14 | 239 | 610 |
30 | 7×0.10 | 0.39 | 0.15 | 1.08 | 381 | 610 |
