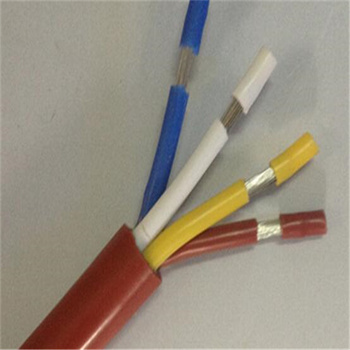

multi core halogen-free heat-resistant silicone cable
Application
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes.
They are heat-resistant for permanent temperature up to +180°C,
for short time operation up to +220°C. The good performance of the environmental resistant properties
means that silicone cables can be used at temperatures down to -60°C.
Cable structure
Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228
Insulation: Silicone rubber.
Insulation: Silicone rubber.
Characteristics of cable
Continuous working temperature :
-60°C to +180°C. Max: at +220°C.
Minimum bending radius 7.5*OD
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Working Voltage:300/500 V
Test Voltage:2000 V
multi core halogen-free heat-resistant silicone cable
Cable Size (mm2) | Conductor | Cable OD (mm) | Copper weight (KG/KM) | Cable Weight (KG/KM) |
2 x 1,5 | 30 x 0,26 | 8,2 | 69 | 103 |
3 x 1,5 | 30 x 0,26 | 8,6 | 85 | 128 |
4 x 1,5 | 30 x 0,26 | 9,4 | 103 | 158 |
5 x 1,5 | 30 x 0,26 | 10,2 | 127 | 188 |
7 x 1,5 | 30 x 0,26 | 11,2 | 162 | 250 |
12 x 1,5 | 30 x 0,26 | 15,4 | 253 | 433 |
3 x 2,5 | 50 x 0,26 | 10,3 | 127 | 189 |
4 x 2,5 | 50 x 0,26 | 11,4 | 153 | 249 |
5 x 2,5 | 50 x 0,26 | 12,4 | 184 | 293 |
