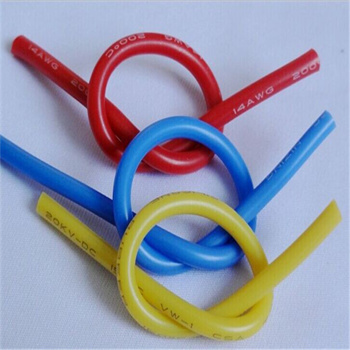

Flexible Home Appliances Used Silicone Rubber Cable
Nominal Voltage: 300V
Temperature Range: -60 ° C ~+150° C
Testing Voltage: 2000V
Conductor: Bare Copper or Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Characteristic:
it has excellent high temperature &low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life.And soft, easy to install.
Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns, burner and high temperature environment.
Silicone Rubber Insulated Wire | |||||
AWG | Conductor No./Dia | Overall Diameter (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | Packing Length(metre) |
30 | 7/0.103 | 0.31 | 0.76 | 1.83 | 610 |
28 | 7/0.127 | 0.38 | 0.76 | 1.9 | 610 |
26 | 7/0.160 | 0.49 | 0.76 | 2.01 | 305 |
24 | 7/0.203 | 0.61 | 0.76 | 2.13 | 305 |
22 | 7/0.254 | 0.76 | 0.76 | 2.28 | 305 |
20 | 7/0.310 | 0.94 | 0.76 | 2.47 | 305 |
18 | 7/0.39 | 1.17 | 0.76 | 2.71 | 305 |
16 | 7/0.5 | 1.5 | 0.76 | 3.02 | 305
|
