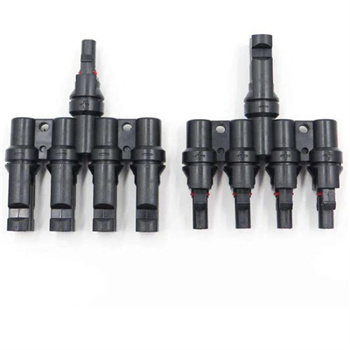

4 way T type branch MC4 connector

Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project. Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).



1.Compatible with  cable coupler solar connector PV-KBT4/KST4.

2.15 Years of production experience in solar connectors

3.TUV approved & Quick and easy to install

4.Protection class IP67 Suitable for outdoor harsh environments

5.Stable connection & Reducing maintenance cost

6.Free Sample is available



Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.



Technical Data

Rated Current 30A(2.5-6mm2),

Rated Voltage 1000VDC/600VDC

Test Voltage 6000V(50Hz,1min)

Overvoltage Type/Pollution Degree CAT III /2

Contact Resistance Of Plug Connector ImΩ

Contact Material Copper, Tin-plated

Insulation Material PPO

Degree Of Protection IP2X/IP67

Safety Class II

Suitable Cable OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force ≤ 50N/≥ 50N

Connecting System Crimp connection

Temperature Range -40 °C ~ +125°C
