Cable Construction conductor: 99.99% oxygen-free copper wire, strand type; insulation: PVC
1)Conductor: Copper (70° C single core solid)
2)Insulation: PVC
3)Sheathed: Non
4)Rated voltage (U0/U): 300/500V 400/750V 220V
5)Standard: IEC60227-2003 or as per the customers' requests
6)Purpose: For internal wiring
7)The max continuous operating temperature of the conductor: 70° C
8)The ambient temperature for the cable installation: ≥ 0° C
9)The bending radius of the cable: (D=cable outer diameter, R=bending radius) A. D≤ 25mm, R≥ 4D B. D>25mm, R≥ 6D"

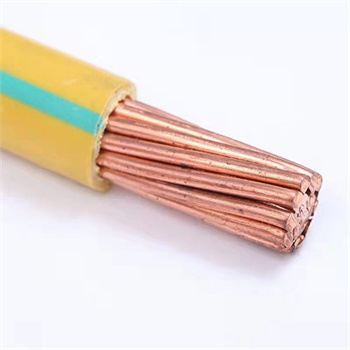

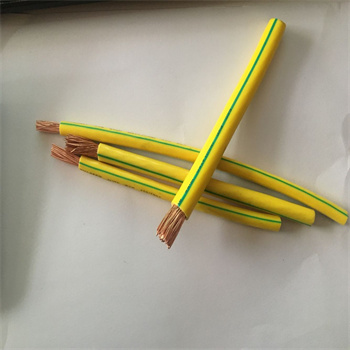

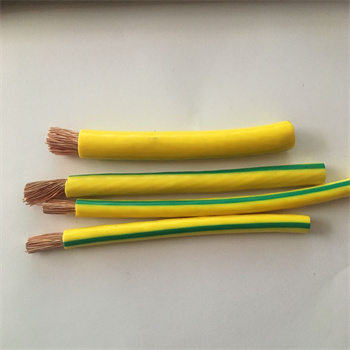

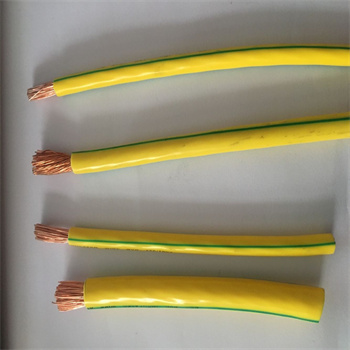

China supplier ground wire ground 16mm grounding cable
Nominal section area | No./ diameter of core | Insulation thickness | Max outer diameter | Reference Weight | Conductor resistance at 20°C≤ |
(mm2) | (mm) | (mm) | (mm) | (km/kg) | (Ω/km) |
0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
