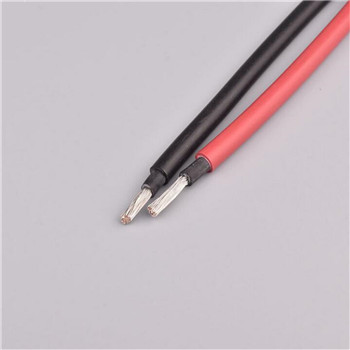

Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Insulation Material：PPO
Contact Material：Copper,Tin plated
Connector：Solar Panel Connector
Wire Color：Black/Red
Wire Gauge:2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG)
Rated Current:30A(2.5mm2),50A(4mm2,6mm2)
Rated Voltage:1000V/1500V DC
Test Voltage:8kV(50Hz,1min)
Wire Length:1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized
Waterproof protection:IP68
Application:Suitable for Generator, Solar Panel system.
Package:Bulk Packing, we accept custom packing
solar cable specifications | |
Core Conductor: | Tinned annealed copper(stranded core) |
Popular Sizes: | 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
Cable Conductor: | Stranded tinned annealed copper |
Insulation: | XLPE |
Jacket: | XLPE(black, red) |
Nominal Volvatage: | Uo/U= 600/1000VAC, 1000/1800VDC |
Test Voltage: | 6500V, 50HZ, 5Min |
Fire Performance: | IEC 60332-1, UL1581 VW-1 |
Bending Radius | Fixed installation>4X, Occasionally moved>5X |
Solar Cable | ||||
Size (AWG) | Conductor Strand (mm) | 600V Cable OD (mm) | 1000V & 2000V Cable OD (mm) | Max DC Resistance (20°C) (Ω/km) |
12 | 65/0.254 | 5.4 | 6.2 | 5.64 |
10 | 105/0.254 | 6.2 | 6.9 | 3.546 |
8 | 168/0.254 | 7.9 | 8.4 | 2.23 |
6 | 266/0.254 | 9.8 | 10.3 | 1.403 |
4 | 420/0.254 | 11.7 | 11.7 | 0.882 |
2 | 665/0.254 | 13.3 | 13.4 | 0.5548 |
1 | 836/0.254 | 15.2 | 16.1 | 0.4398 |
Features:
1. For outdoor use and it is moisture,UV and corrosion resistant.

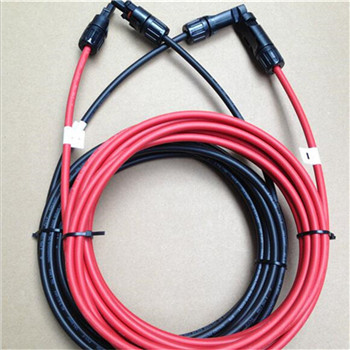

2. Solar Panel Male and Female Hard plastic connector at the end.
3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.
