1.Conductor Material: Fully annealed bare stranded copper 2.Insulation Material: PVC 3.Maximum Voltage: 450/750 VDC 4.Cable Length: 30CM,60CM,100CM or customized 5.Sectional area:1x16mm2 or customized 6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc 7.Operating Temperature: -50°C to 105°C 8.Standards: RoHS,UL,ISO9001
Construction
Conductor material: Bare Copper
Gauge: 500 – 6
Insulation material: TPE
Operating Temperature: -40°C to 90°C
Meets Requirements: NEC
Applications
Secondary voltage resistance welding cable leads.
Temporary power uses
National Electrical Code article 630 electric welders.
Power supply applications not exceeding 600 volts AC.
Features
Special stranding and packaging are available upon request.
Oil and Flame Resistant.
Custom print available upon request.

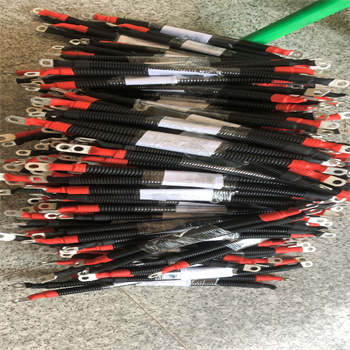

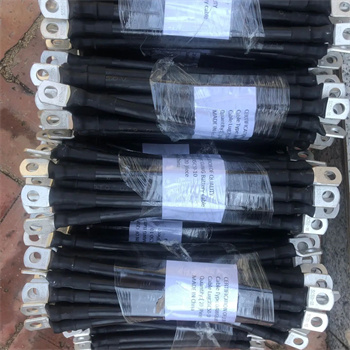

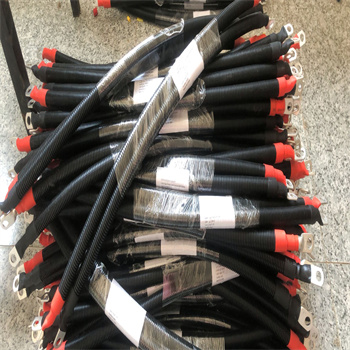

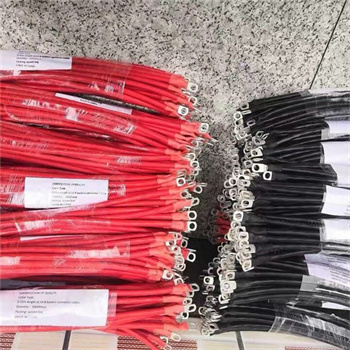

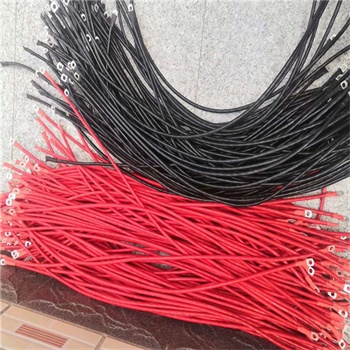

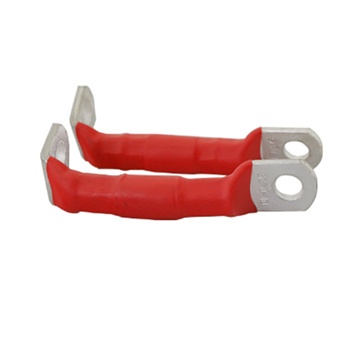

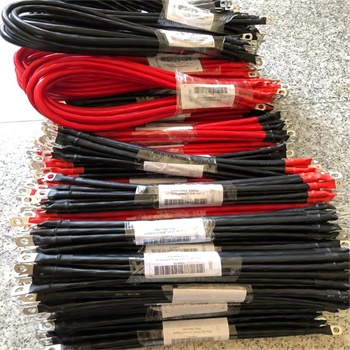

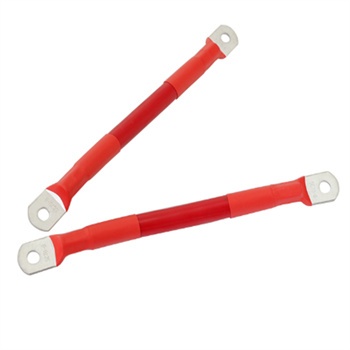

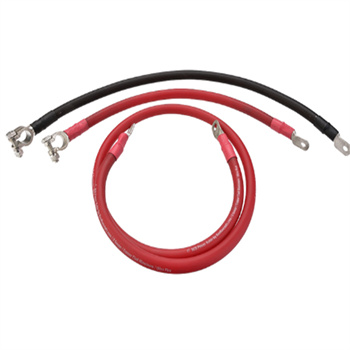

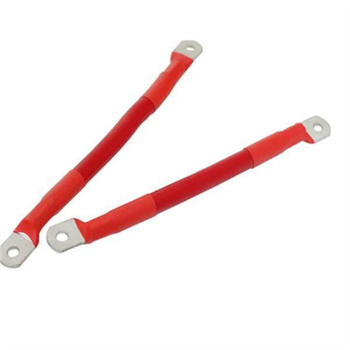

19inch 6gauge top post power terminal battery cable and tinned lug assembly
GAUGE | STRANDING | INSULATION | NOMINAL O.D. | STANDARD | APPROX. WEIGHT | ||||
THICKNESS | PACKAGE | ||||||||
in | mm | in | mm | in | mm | m | LBS/1000FT | kg/km | |
6 | 7*37/0.01 | 7*37/0.25 | 0.06 | 1.52 | 0.310 | 7.87 | 1000 | 113 | 168.3 |
4 | 7*52/0.01 | 7*52/0.25 | 0.06 | 1.52 | 0.345 | 8.76 | 1000 | 147 | 219.0 |
2 | 12*52/0.01 | 12*52/0.25 | 0.06 | 1.52 | 0.417 | 10.59 | 500 | 236 | 351.5 |
1 | 12*65/0.01 | 12*65/0.25 | 0.08 | 2.03 | 0.500 | 12.70 | 500 | 313 | 466.2 |
1/0 | 19*52/0.01 | 19*52/0.25 | 0.08 | 2.03 | 0.530 | 13.46 | 500 | 378 | 563.0 |
2/0 | 19*65/0.01 | 19*65/0.25 | 0.08 | 2.03 | 0.583 | 14.81 | 500 | 463 | 689.6 |
3/0 | 19*81/0.01 | 19*81/0.25 | 0.08 | 2.03 | 0.622 | 15.80 | 500 | 563 | 838.6 |
4/0 | 19*106/0.01 | 19*106/0.25 | 0.08 | 2.03 | 0.710 | 18.03 | 500 | 734 | 1093.3 |
250 | 19*133/0.01 | 19*133/0.25 | 0.12 | 3.05 | 0.855 | 21.72 | 500 | 938 | 1397.2 |
350 | 19*7*26/0.01 | 19*7*26/0.25 | 0.12 | 3.05 | 0.995 | 25.27 | 500 | 1282 | 1909.5 |
500 | 19*7*38/0.01 | 19*7*38/0.25 | 0.12 | 3.05 | 1.170 | 29.72 | 500 | 1840 | 2740.7 |
Features:
1. High quality car battery cable.
2. Battery cable, 10AWG、8AWG、6AWG、4AWG etc are optional.
3. PVC jacket in various colors and transparent are optional.
4. Length: As your requests.
5. The cable can be printed with your specifications or logo.
6. One or two sample can be free if it available, but freight collect.
Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
Services & Advantages
1.OEM / ODM
2. Enough stock to meet fast delivery.
3. 2 year's quality guarantee.
4. Alibaba trade assurance.
5. Form E, FTA,C/O is available.
6. Good after-sale service team to solve problems until customer received goods well
7. Inspect every product before delivery
8. Welcome to visit our factory
