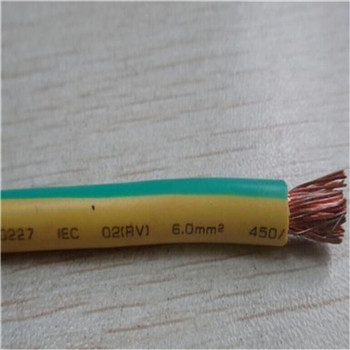

Yellow Green Grounding Cable / Earth Wire / Earth Cable
1,Application
This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and
apparatus, telecommunications equipment and lighting ect. fixed installation.
2,Operating Characteristic
1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V
2)The conductor of electric wire cable allows working temperature <70°C for long time
3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius
should ≥4D,OD≥25mm, allowed bending radius should≥6D

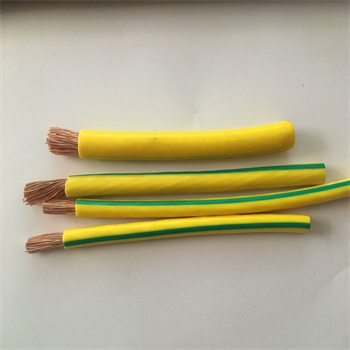

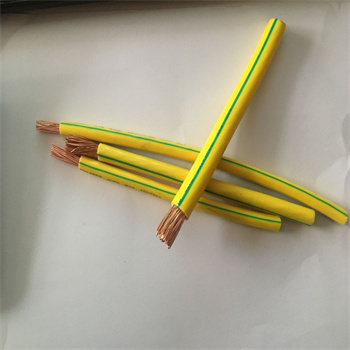

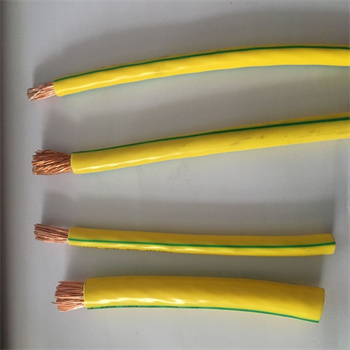

Flexible Copper conductor Earth Cable Yellow/Green from 2.5mm2 to 185mm2
Nominal | Number/diameter | Insulation | Maximum outer | Reference | Conductor |
section | of core | thickness | diameter | Weight | resistance at |
(mm2) | (mm) | (mm) | (mm) | (km/kg) | 20°C≤ |
(Ω/km) | |||||
0.5 | 1/0.80 | 0.6 | 2.4 | 8.44 | 36 |
0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
16 | 7/1.70 | 1 | 8 | 178.68 | 1.15 |
25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
