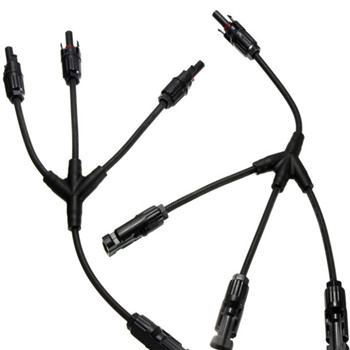

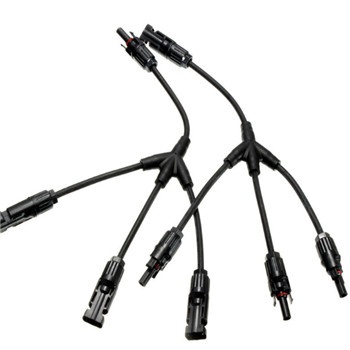

1 to 3 branch solar connector, 3-Y branch solar connector, 1x3 branch connector, with TUV certification

1 to 3 branch solar connector, 3-Y branch solar connector, 1x3 branch connector, with TUV certification

1 to 3 branch solar connector,  3-Y branch solar connector, 1x3 branch connector, with TUV certification

Inquiry Now

Rate voltage 1000V

Rated current 25A(2.5mm2) , 36A(4mm2,6mm2)

Test voltage 6KV(50Hz)

Protect degree IP67

Insulation material PPO

Contact material Copper sliver plated

Operating temperature -40°C~+90°C

Safe class 2

Contact resistance of plug connectors ≤5mΩ

Insertion force ≤50N

Withdraw force ≥50N

Suitable cable 2.5mm2/4mm2/6mm2(AWG14/12/10)

Locking system Snap in





1. Acc.to DIN V VDE V 0126-3/12.06

2. 2. highly robustness,UV-Resistance,

3. Connector adopts touch and insertion of reed with inner-knob type.

4. Auto-lock equipment of male and female points enable connection more easy and reliable.

5. Popular figure suit most of field installation

6. Simple on-site processing

7. Accommodates PV cable with deferent insulation diameters

8. High current carrying capacity
