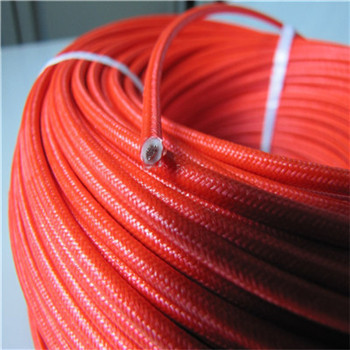

SIF/GL Fiberglass braided Silicone Rubber Cable

Applications

These cables are used at high ambient temperatures and for ambient air temperature between -60degree and +180degree in dry locations.

They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.

Cable structure

Conductor: Plain or tinned annealed flexible copper wire;

Insulation: silicone rubber

Sheath/Jacket: fiber glass

Rated Voltage: 300/500v

Operating temperature: Maximum 185°C, Minimum bending -40°C

Glass fibre braiding silicone rubber high temperature cable
Nominal area	Conductor construction	Nominal insulation thickness	Nominal braiding thickness	Nominal OD	Maximum DC Resistance at 20℃	Packing length
（mm2）	Strand/Diameter(mm)	（mm）	（mm）	（mm）	（Ω/km）	（m）
0.5	28 × 0.15	0.6	0.15	2.4	40.1	200
0.75	42 × 0.15	0.6	0.15	2.65	26.7	200
1	32 × 0.20	0.6	0.15	2.8	20	200
1.5	48 × 0.20	0.7	0.18	3.4	13.7	100
2.5	49 × 0.25	0.8	0.18	4	8.21	100
4	56 × 0.30	0.8	0.2	4.6	5.09	100
6	84 × 0.30	0.8	0.2	5.2	3.39	100
10	84 × 0.40	1	0.25	6.7	1.95	100
16	126 × 0.40	1	0.25	9	1.24	100
