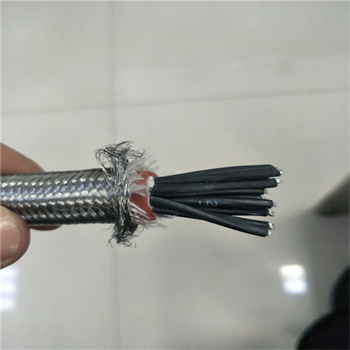

SIHF-C halogen-free copper braided screen silicone mulitcore cable
Cable structure
Conductor: Flexible copper conductors according to IEC 228 class 5.
Available in bare, tin or nickel plated copper.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Braid: Fibreglass braid
Working Voltage : 300/ 500 V. Test Voltage : 2000 V.
Characteristics of cable
Continuous working temperature :
-60°C to +200°C. Peaks at +220°C
Minimum bending radius approx 15 x Cable Ø
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Application
Used to power electrical devices located in areas with high continuous temperatures.
Suitable for wiring in metal industry
Lighting equipment
Electrical approved devicesrequiring a non - flammable cable.
Hot-rolling mills, coking plants, foundries.
Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.
No decomposition occurs when exposed to alcohol, alkaline solutions. Resistant to oxygen and ozone.
multi core, halogen-free silicone cable | ||||
Cable Size (mm2) | Conductor | Cable OD(mm) | Copper weight (KG/KM) | Cable Weight (KG/KM) |
2 x 1,5 | 30 x 0,26 | 7,6 | 30,0 | 97,0 |
3 x 1,5 | 30 x 0,26 | 8,0 | 45,0 | 117,0 |
4 x 1,5 | 30 x 0,26 | 8,8 | 60,0 | 145,0 |
5 x 1,5 | 30 x 0,26 | 9,6 | 75,0 | 175,0 |
7 x 1,5 | 30 x 0,26 | 10,9 | 105,0 | 220,0 |
12 x 1,5 | 30 x 0,26 | 14,6 | 180,0 | 413,0 |
16 x 1,5 | 30 x 0,26 | 16,2 | 240,0 | 520,0 |
24 x 1,5 | 30 x 0,26 | 20,4 | 360,0 | 811,0 |
