Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
CE TUV approved 2PfG 1169 single twin core solar dc cable 2.5mm2 4mm2 6mm2 10mm2
solar cable specifications | |
Core Conductor: | Tinned annealed copper(stranded core) |
Popular Sizes: |
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
Cable Conductor: | Stranded tinned annealed copper |
Insulation: | XLPE |
Jacket: | XLPE(black, red) |
Nominal Volvatage: | Uo/U= 600/1000VAC, 1000/1800VDC |
Test Voltage: | 6500V, 50HZ, 5Min |
Fire Performance: | IEC 60332-1, UL1581 VW-1 |
Bending Radius | Fixed installation>4X, Occasionally moved>5X |
1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3.Halogen free and low smoke, Rohs standard.
4.UV resistance.
5.Temperature rating:-40Degree to 125Degree, cold resistance.
6.Certificate: TUV UL CCC CSA
7.Power cable for photovoltaic system.

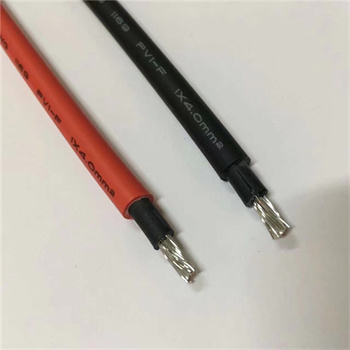

Single-Core Solar Cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×2.5 | 49/0.25 | 0.8 | 0.8 | 5.4±0.3 | 8.21 |
1×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3 | 5.09 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.8±0.3 | 3.39 |
1×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3 | 1.95 |
1×16 | 126/0.40 | 1.0 | 1.0 | 10.0±0.3 | 1.24 |
1×25 | 196/0.40 | 1.2 | 1.2 | 12.2±0.5 | 0.795 |
1×35 | 276/0.40 | 1.2 | 1.2 | 13.6±0.5 | 0.565 |

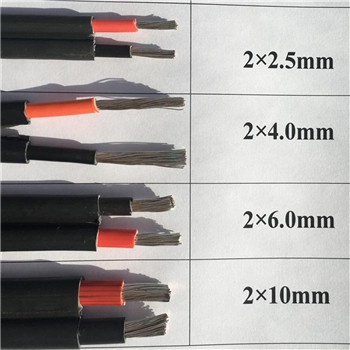

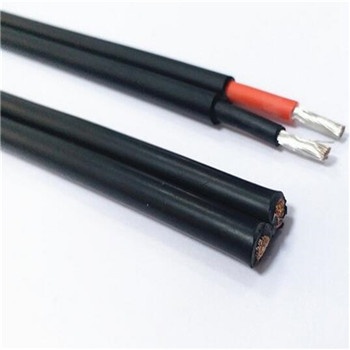

Twin Core Solar cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
2×2.5 | 49/0.25 | 0.7 | 0.8 | 5.0±0.3×10.6±0.3 | 8.21 |
2×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3×13.8±0.3 | 5.09 |
2×6 | 84/0.30 | 0.8 | 1.0 | 7.2±0.3×15.3±0.3 | 3.39 |
2×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3×19.2±0.3 | 1.95 |
