Technical data

Special silicone multicore cable with higher

heat-resistance range adapted to

DIN VDE 0250-1 and

DIN VDE 0285-525-2-83 /

DIN EN 50525-2-83

Temperature range

-60°C to +180°C

(for short time +220°C)

Temperature limit

at the conductor in operation +180°C

Nominal voltage U0/U 300/500 V

Test voltage 2000 V

Breakdown voltage min. 5000 V

Insulation resistance

min. 200 MOhm x km

Power rating

at ambient temperature up to +145°C to

DIN VDE 0100 for higher temperatures valid:

150°C - load value 100%

155°C - load value 91%

160°C - load value 82%

165°C - load value 71%

170°C - load value 58%

175°C - load value 41%

Minimum bending radius

flexing 10x cable Ø

fixed installation 5x cable Ø

Radiation resistance

up to 20x106 cJ/kg (up to 20 Mrad)

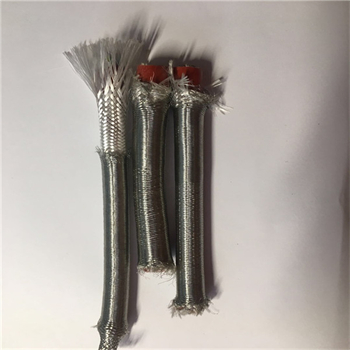

Cable structure

Tinned copper conductor, fine wire

acc. to DIN VDE 0295 cl.5 /

BS 6360 cl.5 / IEC 60228 cl.5

Core insulation of silicone

Core identification to DIN VDE 0293-308

- up to 5 cores coloured

- from 6 cores, black with continuous

   white numbering

GN-YE conductor, 3 cores and above

Cores stranded in layers with

optimal lay length

Sheath of silicone

Glass fibre tape over the sheath

Galvanized steel wire outer braiding
