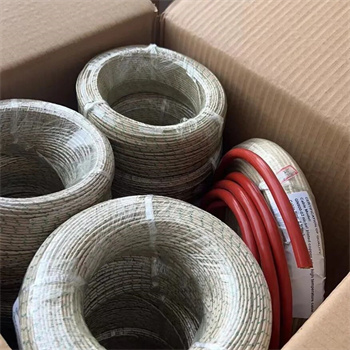

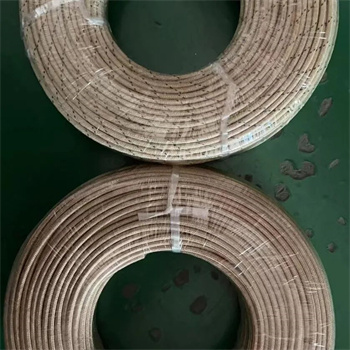

Mica Fiberglass High Temperature Heat Resistance Wire Cable

Outer Covering

Fiberglass braid and mica with high temperature finish

Standard Color Coding

Characteristics

Unique insulation system offers outstanding heat-aged flexibility for longer service life.

Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.

Provides dimensional consistency and uniformity.

Suitable for applications to -60°C

Resists braid pushback.

Application

Used for internal wiring of commercial, industrial,household ovens and lighting fixture.

Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.

Mica Fiberglass High Temperature Heat Resistance Wire Cable
AWG Size	Conductor Structure	Insulation Thickness mm	Braid Thickness mm	Diameter mm	Ref.	Ref.
					weight	weight
					kg/1000ft	kg/km
24	7/0.20	≥0.63	≥0.18	2.3±0.20	2.7	9.1
22	7/0.254	≥0.63	≥0.18	2.4±0.20	3.6	12.2
20	10/0.254	≥0.63	≥0.18	2.6±0.20	4.5	14.9
18	16/0.254	≥0.63	≥0.18	2.8±0.20	5.5	18.1
16	26/0.254	≥0.63	≥0.18	3.2±0.20	7.3	24.2
14	41/0.254	≥0.63	≥0.18	3.6±0.20	10.4	34.5
12	65/0.254	≥0.63	≥0.18	4.2±0.20	14.1	46.3
10	103/0.254	≥0.76	≥0.38	5.2±0.20	23.6	77.6
8	163/0.254	≥0.76	≥0.38	6.6±0.20	35.4	116.2
