Operate temperature: -60degree to 450degree Cable Structure: nickel plated copper wire + fiberglass braided+ Mica tape wrapping+ fiberglass braided
TECNICAL DATA
Condutor: Nickel Copper
Temperature range:-60℃~+500℃
Rated Voltage: 500V
O.D.Tolerance: ±0.1mm
Colour:White-Blue-Red-Black-Yellow-Green-Transparent-Yellow/Green
Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.

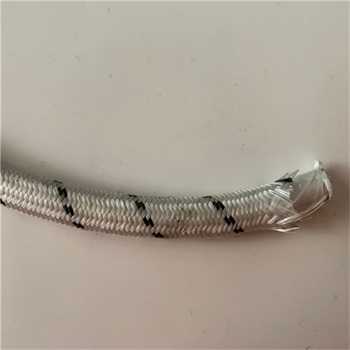

nickel plated copper wire conductor fiberglass mica high temperature wire -60degree to 450degree GN500-02
Sectional Area (mm²) | Condutor Construction (mm) | Insulation Thickness (mm) | Outer Diameter (mm） | Max.Condutor Resistance DC20℃ （Ω/KM | Packing (m) |
0.5 | 7×0.30 | 0.5 | 2.6±0.3 | 40.8 | 200 |
0.75 | 11×0.30 | 0.5 | 2.7±0.3 | 24.3 | 200 |
1 | 14×0.30 | 0.5 | 2.8±0.3 | 20.0 | 200 |
1.5 | 21×0.30 | 0.5 | 3.0±0.3 | 12.6 | 100 |
2 | 28×0.30 | 0.6 | 3.3±0.5 | 9.84 | 100 |
2.5 | 35×0.30 | 0.6 | 3.6±0.5 | 7.37 | 100 |
4 | 56×0.30 | 0.8 | 4.7±0.5 | 4.83 | 100 |
6 | 84×0.30 | 0.8 | 5.5±0.5 | 3.26 | 100 |
10 | 84×0.40 | 0.8 | 6.6±0.5 | 1.80 | 100 |
16 | 228×0.30 | 0.8 | 7.8±0.5 | 1.31 | 100 |
126×0.40 | 0.8 | 7.8±0.5 | 1.31 | 100 | |
25 | 196×0.40 | 0.8 | 9.5±0.5 | 0.758 | 100 |
361×0.30 | 0.8 | 9.5±0.5 | 0.758 | 100 | |
35 | 494×0.30 | 0.8 | 11.2±1.0 | 0.548 | 100 |
50 | 396×0.40 | 1.2 | 13.2±1.0 | 0.384 | 100 |
703×0.30 | 1.2 | 13.2±1.0 | 0.384 | 100 | |
70 | 551×0.40 | 1.2 | 15.4±1.0 | 0.289 | 100 |
988×0.30 | 1.2 | 15.4±1.0 | 0.289 | 100 | |
95 | 760×0.40 | 1.2 | 17.4±1.0 | 0.205 | 100 |
